(55.404.01) - WARNING AND TAILLIGHT KIT W/ANGLE LIGHT BRACKETS

Запчасти Case IH 527B (55.404.01) - WARNING AND TAILLIGHT KIT W/ANGLE LIGHT BRACKETS (55) - ELECTRICAL SYSTEMS

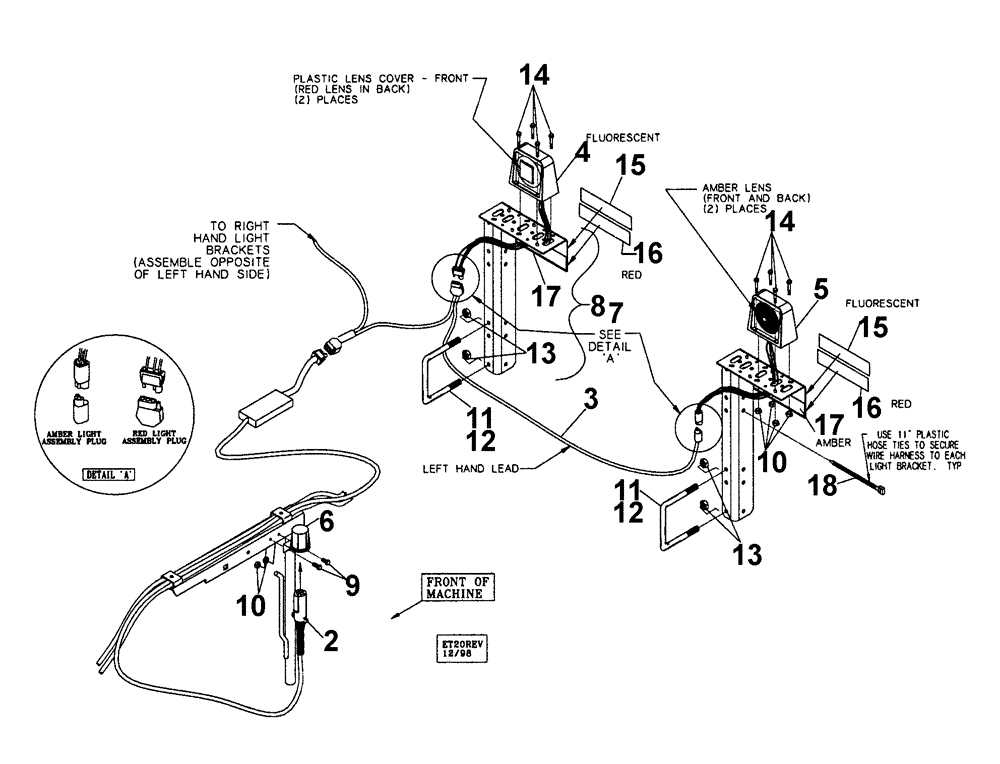

Схема запчастей Case IH 527B - (55.404.01) - WARNING AND TAILLIGHT KIT W/ANGLE LIGHT BRACKETS (55) - ELECTRICAL SYSTEMS
16
16
13
11
18
17
10
6
14
11
17
10
15
11
7
2
12
9
8
3
5
14
13
15
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

87446675

WIRE HARNESS

Front

1шт.

3

87446759

WIRE HARNESS

Rear

1шт.

4

87446791

LAMP

Red

2шт.

5

87446792

LAMP,12V, 21W, Amber

Amber

2шт.

6

27601214

HOLDER

Plug

1шт.

7

87328898

BRACKET

LH, Inc. 15 - 17

2шт.

8

87328897

BRACKET

RH, Inc. 15 - 17

2шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

10

86992211

NUT

1/4", NC, Stover

2шт.

11

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 4" x 6"

4шт.

12

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8" x 4" x 4", Used With Leveler Attachment

4шт.

13

86992213

NUT

3/8", Stover

8шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

NC

16шт.

15

311865A1

REFLECTOR

Fluoresent

4шт.

16

311863A1

REFLECTOR

Red

4шт.

17

311864A1

REFLECTOR

Amber

4шт.

18

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP Plastic 20"

1шт.

18

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Hose Tie, 28"

1шт.

19

27601215

LENS

Amber

1шт.

20

27601216

LENS

Red

1шт.

21

87459024

LENS

Red, Not Shown

1шт.

Used On 87446791 Lamp

1шт.

21

87459023

LENS

Amber, Not Shown

1шт.

Used On 87446972 Lamp

1шт.
