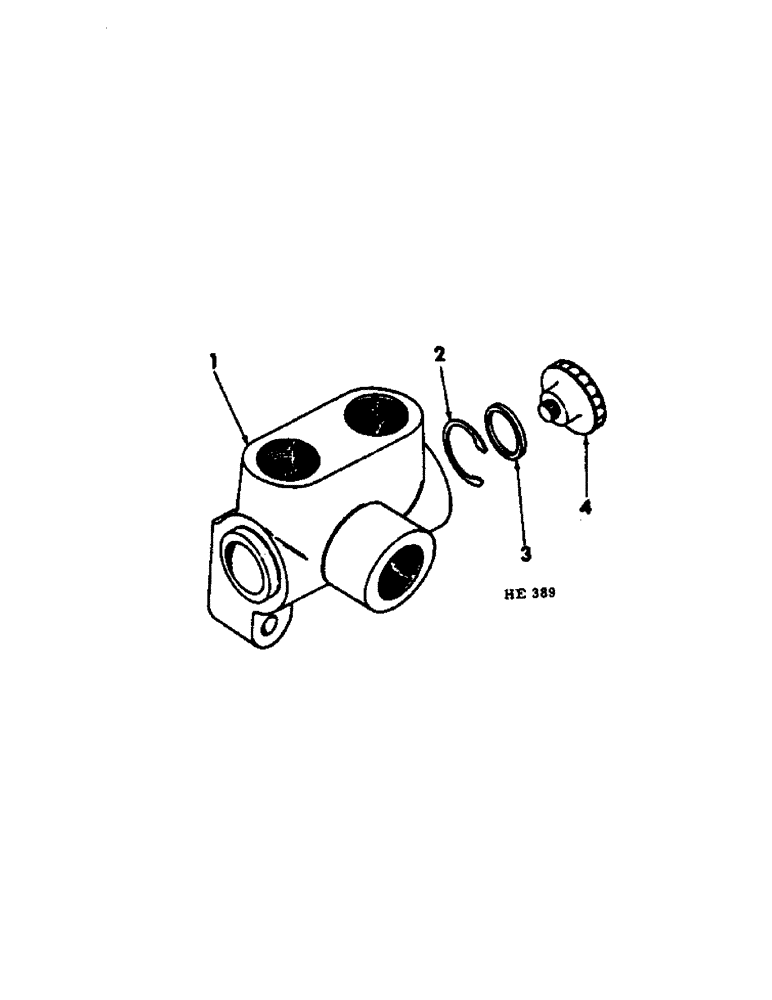

Запчасти Case IH 55 (F-15) - HYDRAULIC DIVERTER VALVE, MACHINE BUILT PRIOR TO 1968 SEASON WHEN TRACTORS EQUIPPED W/ SINGLE VALVE

VALVE ASSY, hydraulic diverter, prior to the 1968 season, order 1-598860R91, package

1шт.

1

HOUSING, diverter valve, for service order 1-598860R91, field improvement package

1шт.

2

661652R1

SNAP RING,#75, Ext

Valve #75, Ext

2шт.

3

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

diverter valve

2шт.

4

384283R1

KNOB

valve control

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

598860R91

PACKAGE, diverter valve field improvement, consists of (1) tube 598253R1, (1) connector 9402683, (1) valve 598157R91, (1) bolt 180073, (1) bar 598252R1, (1) elbow 333934R1, (1) elbow 9402865

1шт.
