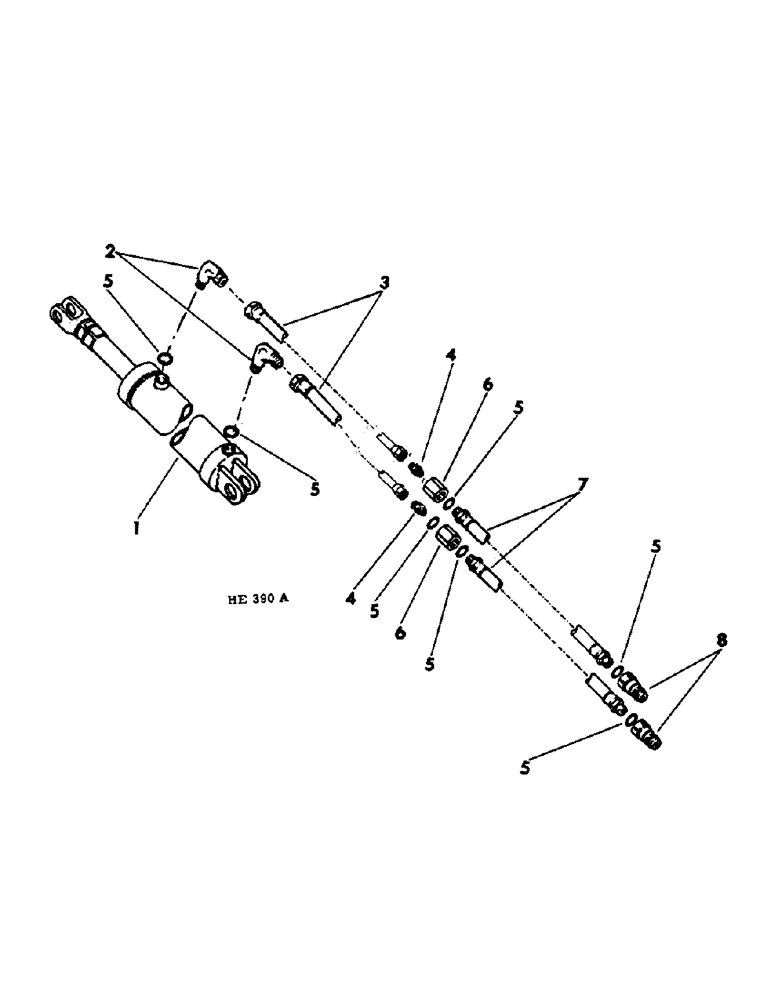

Запчасти Case IH 55 (F-22) - ROCKSHAFT LIFT HYDRAULIC, LOW PRESSURE WITH DUAL REMOTE CONTROL

1

959947R91

CYLINDER,Double Acting, 406.4mm Stroke

5 x 16 inch D.A. hyd, 25 foot & 31 foot machine, recommended hydraulic parts, for component parts refer to remote control hydraulic cylinder

1шт.

2

338768R1

ELBOW UNION,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

ELBOW, 90 deg hydraulic cyl

2шт.

3

324539R91

HOSE ASSY.

HOSE, 1/2 x 112 inch long rear

2шт.

4

9403217

HYD CONNECTOR,7/8"-14, 37 Degree

CONNECTOR, front hose to rear

2шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler

6шт.

6

584802R1

CONNECTOR, ELEC

UNION, hyd hose adaptor

2шт.

7

372437R91

HOSE

1/2 x 112 inch long front

2шт.

8

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic male, opt w/544787R91, coupler

2шт.

8

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic male, opt w/395149R1, coupler, recommended hydraulic parts

2шт.
