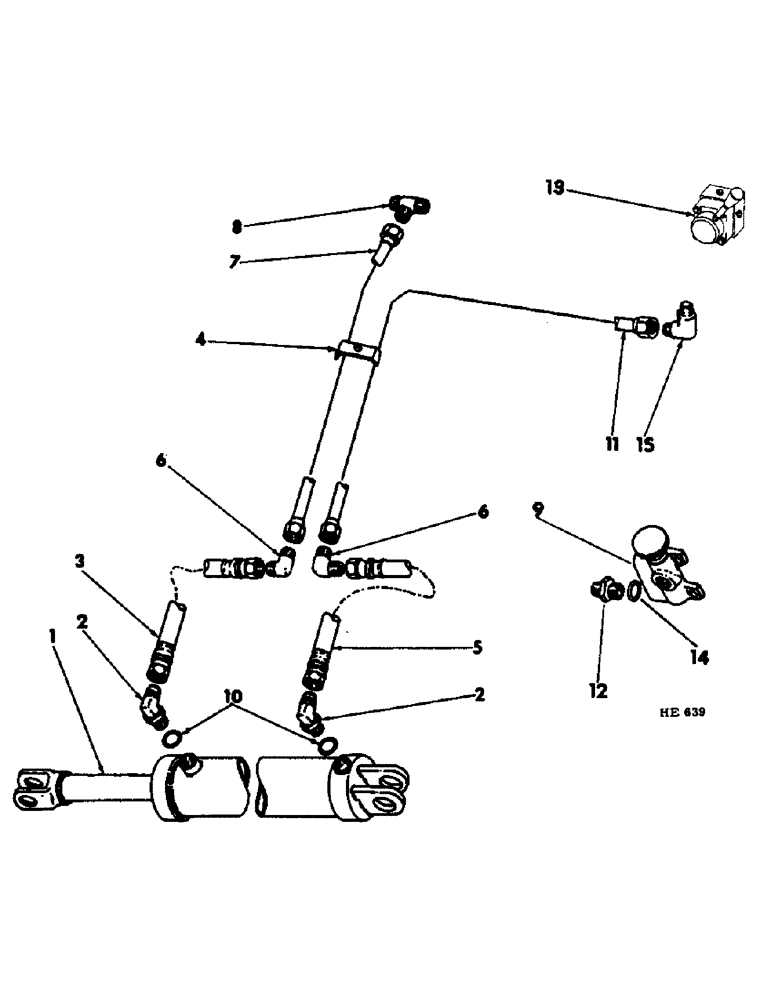

Запчасти Case IH 55 (F-23) - ROCKSHAFT LIFT HYDRAULICS, WITH HYDRAULIC WING LIFT, TRACTOR WITH SINGLE VAVLE HYDRAULICS

1

388688R95

CYLINDER

4 x 8 in. D.A. hyd, 22 foot machine w/high pressure

1шт.

1

1343711C1R

REMAN-HYD CYLINDER

55 INTERNATIONAL CHISEL PLOW, 22 foot machine w/high pressure, Reman for New PN 388688R95

1шт.

1

1343711C1C

REMAN-HYD CYLINDER

Return Number

1шт.

1

387351R93

CYLINDER

3-1/2 x 16 inch D.A. hyd, 25 foot machine w/high pressure

1шт.

1

1272149C92R

REMAN-HYD CYLINDER

55 INTERNATIONAL CHISEL PLOW, w/high pressure, Reman for New PN 387351R93

1шт.

1

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

959947R91

CYLINDER,Double Acting, 406.4mm Stroke

5 x 16 in. D.A. hyd, 25 foot machine w/low pressure, recommended hydraulics, for components refer to remote control hydraulic cylinder

1шт.

2

338768R1

ELBOW UNION,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, NPTF

ELBOW, 90 deg hydraulic cyl, for use w/959947R91, cylinder

2шт.

2

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

90 deg hydraulic cyl, for use w/388688R95 or 387351R93, hydraulic cylinder

1шт.

3

675846R91

HOSE ASSY.

HOSE, rockshaft hyd cyl return flow

1шт.

4

614323R2

CLAMP

hydraulic tube

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

321321R91

HOSE, rockshaft hyd cyl pressure flow, 22 foot machine

1шт.

5

675846R91

HOSE ASSY.

HOSE, rockshaft hyd cyl pressure flow, 25 foot machine

1шт.

6

9402943

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 90 deg flared union

2шт.

7

597421R1

TUBE, master cyl return, 22 foot machine 1" OD, 14, 5.5" Length

1шт.

7

597422R1

TUBE, master cyl return, 25 foot & 31 foot machines

1шт.

8

9402982

TEE,3/4"-16, 37 Degree

three way

1шт.

9

VALVE ASSY, hydraulic diverter, for service prior to 1968 order 1-598860R91

1шт.

180085

SPRING

5/16 x 1-3/4 type 5

2шт.

120376

NUT,5/16"-18, G5

2шт.

9

598860R91

PACKAGE, diverter valve field improve, for components refer to hyd diverter

1шт.

10

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hyd cylinder elbow

2шт.

11

597419R1

TUBE, master cyl high pressure, 22 foot machine 1" OD, 20.5, 17.75" Length

1шт.

11

597420R1

TUBE, master cyl high pressure, 25 & 31 foot machine

1шт.

12

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

UNION, high pressure tube reducer, prior to 1968 season

1шт.

13

598157R91

VALVE, hydraulic diverter, 1968 & since, for component parts refer to hydraulic diverter valve

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hyd cyl elbow, prior to 1968 season

2шт.

15

9402865

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/8"-18, NPTF

90 deg high pressure tube, 1968 season & since

1шт.
