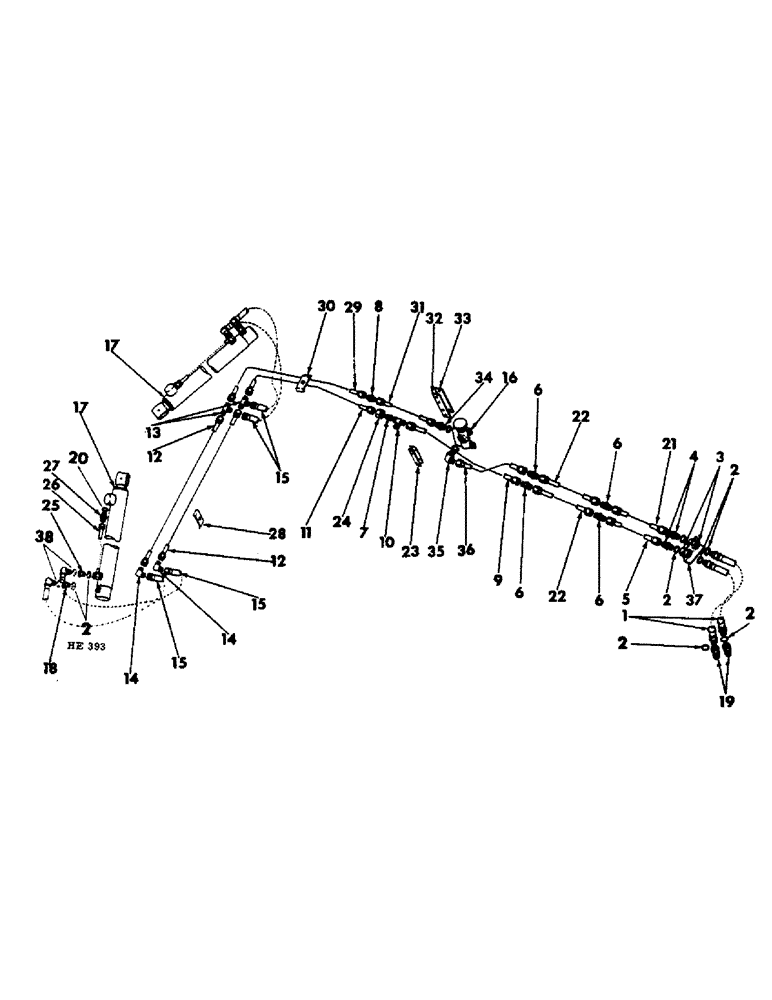

Запчасти Case IH 55 (F-24) - WING LIFT HYDRAULIC, WITH SINGLE VALVE CONTROLS

1

407092R91

HOSE

1/2 x 60 inch long tractor

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hose

10шт.

3

584802R1

CONNECTOR, ELEC

UNION, hyd, Serial Range: hose-tube

2шт.

4

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

UNION, front tube reducer

2шт.

5

597405R1

TUBE ASSY, pressure flow front hyd

1шт.

6

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 hyd 37 deg flared tube front to rear tube, 2 used on 22 foot machine, 4 used on 25 & 31 foot machines

1шт.

7

9403400

REDUCER,37 Degree, 1/2" x 3/8" Tube

9/16-18 hyd 37 deg flared tube

1шт.

8

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 hyd 37 deg flared tube return flow intermediate

1шт.

9

597408R1

TUBE ASSY, pressure flow intermediate 1" OD, 52, 4.5" Length

1шт.

10

9402982

TEE,3/4"-16, 37 Degree

3/4-16 three-way, refer to rockshaft lift hyd

1шт.

11

597409R1

TUBE ASSY, pressure flow intermediate

1шт.

12

597410R1

TUBE ASSY, pressure & return flow, 22 foot machine 0.375" OD, 59.5" Length

2шт.

12

597411R1

TUBE ASSY, pressure & return flow, 25 foot & 31 foot machine 0.375" OD, 95.5, 2" Length

2шт.

13

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

9/16-18 hyd 37 deg flared tube

2шт.

14

9402942

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 hyd 37 deg flared tube 90 deg RH lift cyl

2шт.

15

390812R1

HOSE, 1/2 x 25 inch long pressure and return flow lift cyl

4шт.

16

VALVE ASSY, hydraulic diverter, for service of the complete valve order 1-598860R91, pkg

1шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 x 1-3/4 hex-hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

16

598860R91

PACKAGE, diverter valve field improve, refer to hyd diverter for components

1шт.

17

384474R94

CYLINDER ASSY.

CYLINDER, wing lift hydraulic, for component parts refer to wing lift hydraulic cyl

2шт.

594608R1

PIN

hydraulic cylinder lower

2шт.

936587R91

PIN

hydraulic cylinder upper

2шт.

Q3482

WASHER

1.156 x 1.750 x .105

4шт.

119202

PIN

3/8 x 2-1/4 cotter, lower pin

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), , Upper pin 1/4" x 1 1/4"

1шт.

18

598493R1

UNION, pressure flow reducer

2шт.

19

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic hose male, opt w/544787R91, coupler

2шт.

19

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic hose male, opt w/395149R1, coupler, recommended hydraulic parts

2шт.

20

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

hydraulic coupler

2шт.

21

597412R1

TUBE ASSY, return flow front hyd

1шт.

22

597406R1

TUBE ASSY, pressure and return flow front extension, 25 foot and 31 foot machines 1" OD, 38" Length

2шт.

23

597424R1

CLAMP, hydraulic tube, 4 used on 22 foot model, 6 used on 25 foot & 31 foot model

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1 bolt used per clamp Hex, 1/4"-20 x 1 1/4", G5

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

24

9403528

TUBE NUT,37 Degree, 3/4"-16, Type B

NUT, hyd tube reducer

1шт.

25

407044R1

UNION

REDUCER, 7/8-16 to 9/16-18 37 deg flared tube return flow

2шт.

26

386886R11

TUBE ASSY, lift cyl return flow

2шт.

27

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION, 3/4-16 hyd flared tube short swivel lift cyl

2шт.

28

614323R2

CLAMP

rear hydraulic tubes

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1/4-20 x 7/8 hex-hd

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

29

597418R41

TUBE ASSY, return flow intermediate

1шт.

30

614323R2

CLAMP

hydraulic tube, 3 used on 22 foot model, 4 used on 25 foot & 31 foot models

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4-20 x 7/8 hex-hd, 1 bolt used per clamp

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1 used per bolt 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 1 used per bolt 1/4"

1шт.

31

597417R1

TUBE ASSY, return flow centre 0.375" OD, 46.25, 1.75" Length

1шт.

32

597415R1

BAR, hydraulic tube clamping

1шт.

33

597416R1

BAR, hydraulic tube clamping, 2 of each bar used 22 foot model, 3 used on 25 foot & 31 foot model

1шт.

189298

BOLT,Hex, 5/16" - 18 x 4", Gr 5

5/16-18 x 4 hex-hd, 22 foot model

4шт.

191127

BOLT,Hex, 5/16" - 18 x 5", Gr 5

5/16-18 x 5 hex-hd, 25 foot & 31 foot model

6шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

34

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

UNION, diverter valve reducer

1шт.

35

936450R91

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

90 deg diverter valve hyd

1шт.

36

597414R1

TUBE ASSY, diverter valve input 1" OD, 10.5, 3" Length

1шт.

37

597423R1

ANGLE, hydraulic hose bracket

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga

1шт.

38

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, lift cylinder hoses

4шт.
