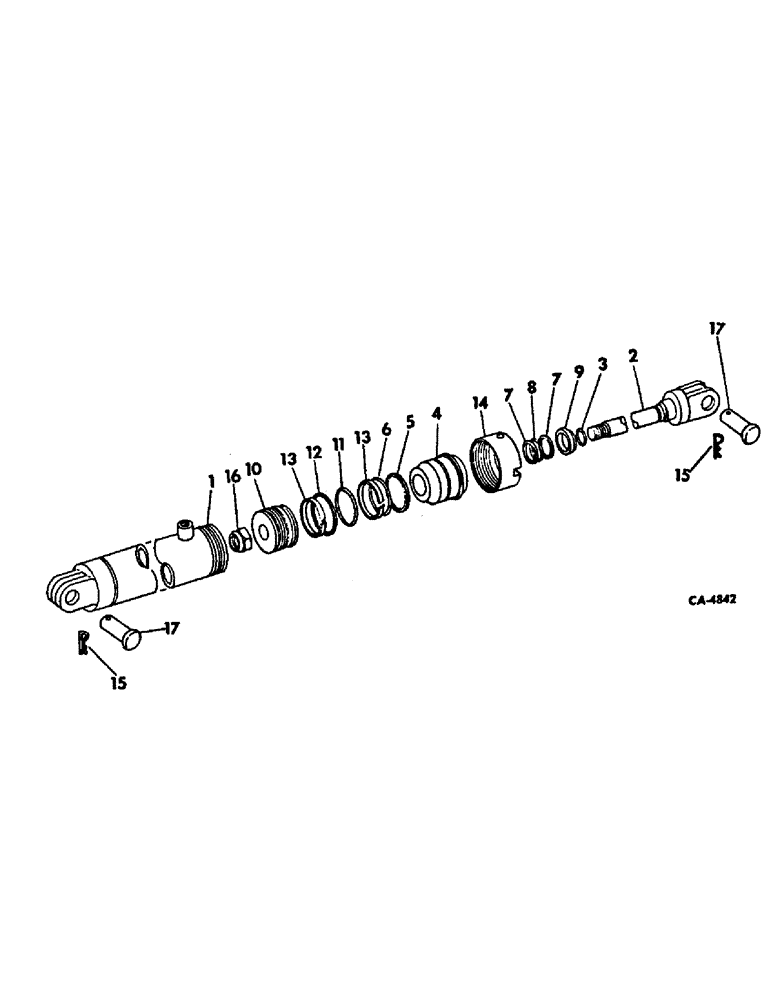

Запчасти Case IH 55 (F-32) - ROCKSHAFT LIFT HYDRAULIC CYLINDER, 25 FOOT AND 31 FOOT MACHINES

387351R93

CYLINDER

rockshaft lift hydraulic, 3-1/2 x 16 inch D.A.

1шт.

1272149C92R

REMAN-HYD CYLINDER

55 INTERNATIONAL CHISEL PLOW, rockshaft lift hydraulic, Reman for New PN 387351R93

1шт.

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

1

387359R12

TUBE

PIPE ASSY, hyd cyl

1шт.

2

387361R12

ROD

ASSY, piston

1шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

piston rod static

1шт.

4

387353R1

END

HEAD, hyd cyl front

1шт.

4

1272149C92R

REMAN-HYD CYLINDER

55 INTERNATIONAL CHISEL PLOW, HEAD, hyd cyl front, Reman for New PN 387353R1

1шт.

4

1272149C92C

CORE-HYD CYLINDER

Return Number

1шт.

5

381088R1

BACK-UP RING

front head back-up

1шт.

6

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16 head

1шт.

7

387362R2

BACK-UP RING

WASHER, piston rod back-up

2шт.

8

403995R1

RING

quad

1шт.

9

403845R1

WIPER SEAL

WIPER, piston rod

1шт.

10

387354R1

PISTON

hyd

1шт.

11

380910R1

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

3 x 3-3/16 x 3/32 piston seal

1шт.

12

381086R1

RING

SEAL, piston

1шт.

13

383005R1

RING

piston bearing

2шт.

14

381089R1

RING

bearing

1шт.

15

520175R1

CLIP

PIN, quick-attachable cotter

2шт.

16

25126R1

LOCK NUT,1 1/8"-12, GC

NUT, 1-1/8-12 PHC piston rod lock

1шт.

17

60909C1

PIN

cylinder pivot head

2шт.

387881R92

SEAL KIT

KIT, hyd cyl ring & seal service, consists of ref nos 3, 5 thru 9, 11 thru 13

1шт.
