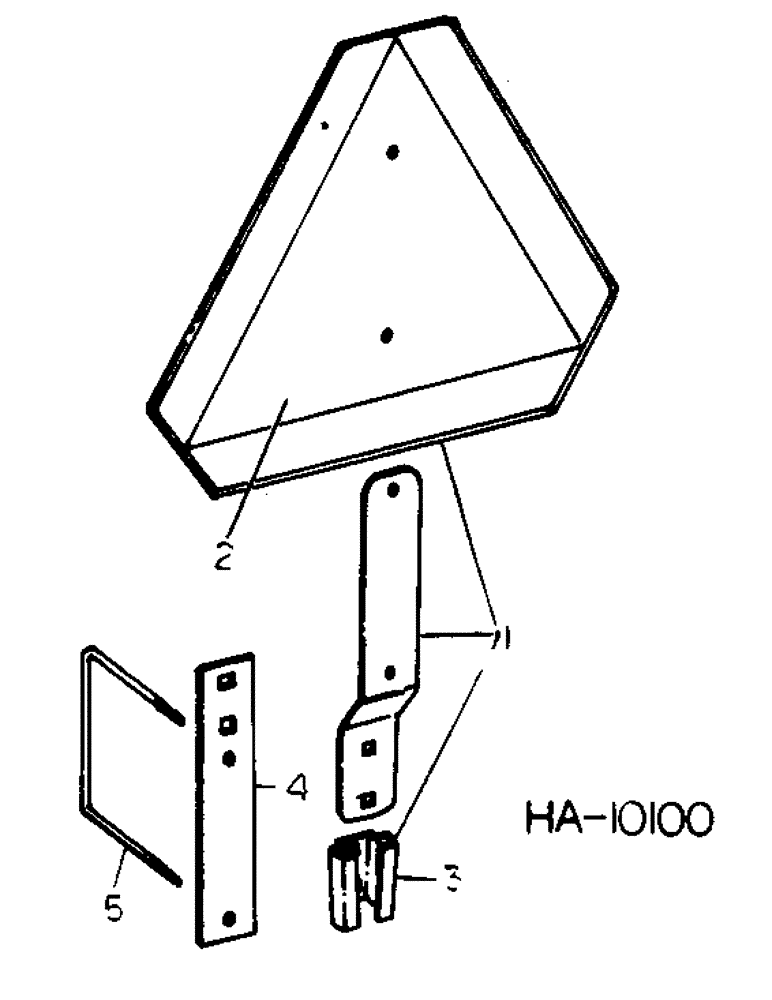

Запчасти Case IH 55 (J-03) - SLOW MOVING VEHICLE EMBLEM, PRODUCT GRAPHICS

1

407220R1

PRODUCT GRAPHIC

PACKAGE, SMV emblem, steel, replaces 407218R1

1шт.

2

407263R1

PRODUCT GRAPHIC,SMV Triangle Yellow Orange

PACKAGE, SMV emblem film kit

1шт.

3

398976R1

BRACKET

SMV mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

608328R1

BAR

SMV emblem mounting

1шт.

5

810099C1

BOLT,U, 1/4" - 20 x 4.75"

U-BOLT, mounting bar

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21871R1

WASHER

.281 x 1.000 x .042

2шт.

175311C1

REFLECTOR

TAPE, red reflective safety

4шт.

174732C1

REFLECTOR

TAPE, amber reflective safety

2шт.

61907C1

DECAL

PRODUCT GRAPHIC, general warning, English

1шт.

71483C1

PRODUCT GRAPHIC

general warning, French

1шт.

71484C1

PRODUCT GRAPHIC

general warning, Spanish

1шт.

810170C1

PRODUCT GRAPHIC

wing frame caution

2шт.

810059C92

KIT

1шт.

PACKAGE, product graphics service, consists of (1) product graphic (NSS), (4) reflector 175311C1, (2) reflector 174732C1, (1) product graphic 61907C1, (2) product graphic 810170C1, (2) product graphic (NSS), (1) product graphic (NSS), (2) product graphic (NSS)

1шт.

77583C91

PACKAGE

IH trademark, large size, consists of (2) IH trademark 6.58 x 7.09 (NSS), (2) IH trademark 7.68 x 8.27 (NSS), (2) IH trademark 10.24 x 11.02 (NSS)

1шт.

77582C91

PACKAGE

IH trademark, medium size, consists of (2) IH trademark 3.66 x 3.94 (NSS), (2) IH trademark 4.39 x 4.72 (NSS), (2) IH trademark 5.48 x 5.91 (NSS)

1шт.

77581C91

PRODUCT GRAPHIC

PACKAGE, IH trademark, small size, consists of (2) IH trademark 1.46 x 1.57 (NSS), (2) IH trademark 2.19 x 2.36 (NSS), (2) IH trademark 2.93 x 3.15 (NSS)

1шт.

547495R92

DECAL KIT

PACKAGE, International, for red machines, consists of (2) International 8.56 x .56 (NSS), (2) International 14.06 x .94 (NSS), (2) International 23.12 x 1.50 (NSS), (2) International 35.12 x 2.25 (NSS)

1шт.

547497R92

DECAL

PACKAGE, model designation, for red machines, consists of (2) model designation 8.78 x 2.45 (NSS), (2) model designation 14.08 x 4.50 (NSS), (2) model designation 20.04 x 7.57 (NSS), (2) model designation 15.20 x 7.56 (NSS)

1шт.
