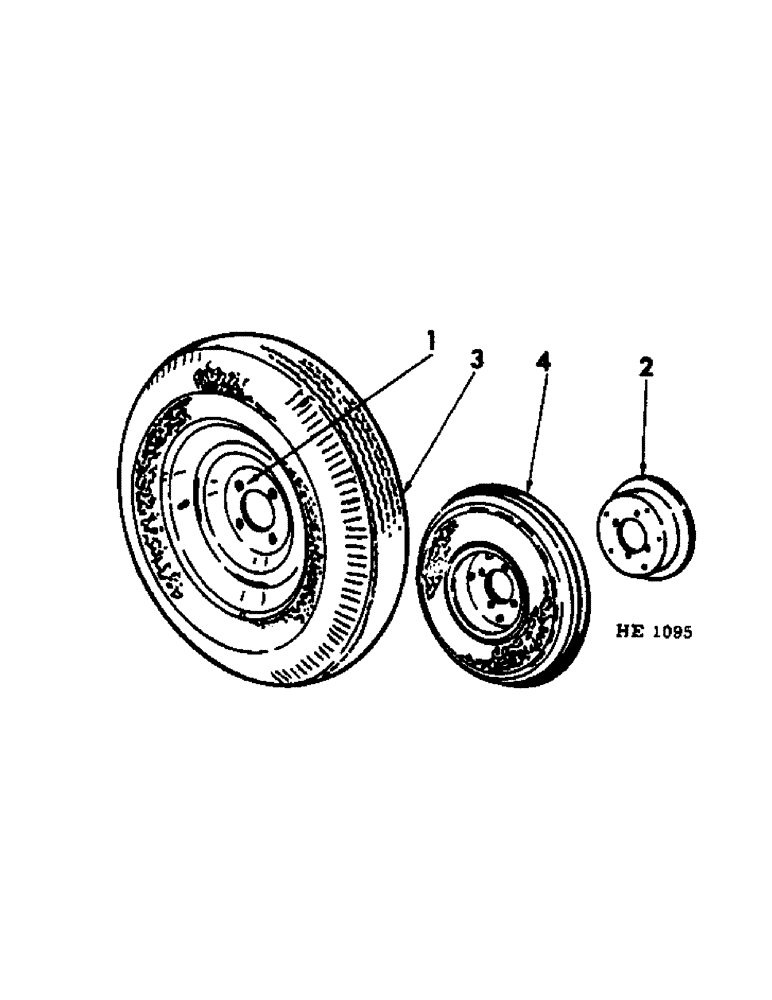

Запчасти Case IH 55 (B-07) - GAUGE WHEEL, PNEUMATIC TIRE AND TUBE

1

463036R1

WHEEL (STEERING)

DISK & RIM ASSY, 14 x 5 KB, also for use w/7.50 x 14 inch used auto tires

2шт.

1

490310R1

WHEEL

13 x 5 J, on three rank, use w/13 inch used auto tire

2шт.

2

609377R1

RIM

inner split 4.00 x 9E

2шт.

2

609378R1

NO LONGER SERVICED

RIM, outer split 4.00 x 9E, motor wheel type, mach built prior to 1975 season

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, outer rim to inner rim

8шт.

86837293

SHAFT

BOLT, 1/2-20 x 1 hex-hd, outer & inner rims to hub

8шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

490311R1

WHEEL

RIM, gauge wheel inner

2шт.

2

490312R1

WHEEL

RIM, gauge wheel outer w/valve hole, French & Hecht type, mach built prior to 1975 season

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd, outer rim to inner rim

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

181696

BOLT, 1/2-20 x 1 hex-hd, outer & inner rims to hub

8шт.

3

TIRE & TUBE, 7.50-14 4 ply 1-1, for use w/14 x 5 KB, wheel

2шт.

3

TIRE, 7.50-14 4 ply w1 tubeless, for use w/14 x 5 KB, wheel

2шт.

387841R91

VALVE

TR413 tubeless tire

2шт.

4

TIRE & TUBE, 6.00-9 rib implement 4 ply code 1-1, for use w/4.00 x 9E wheels, mach built prior to 1975 season

2шт.
