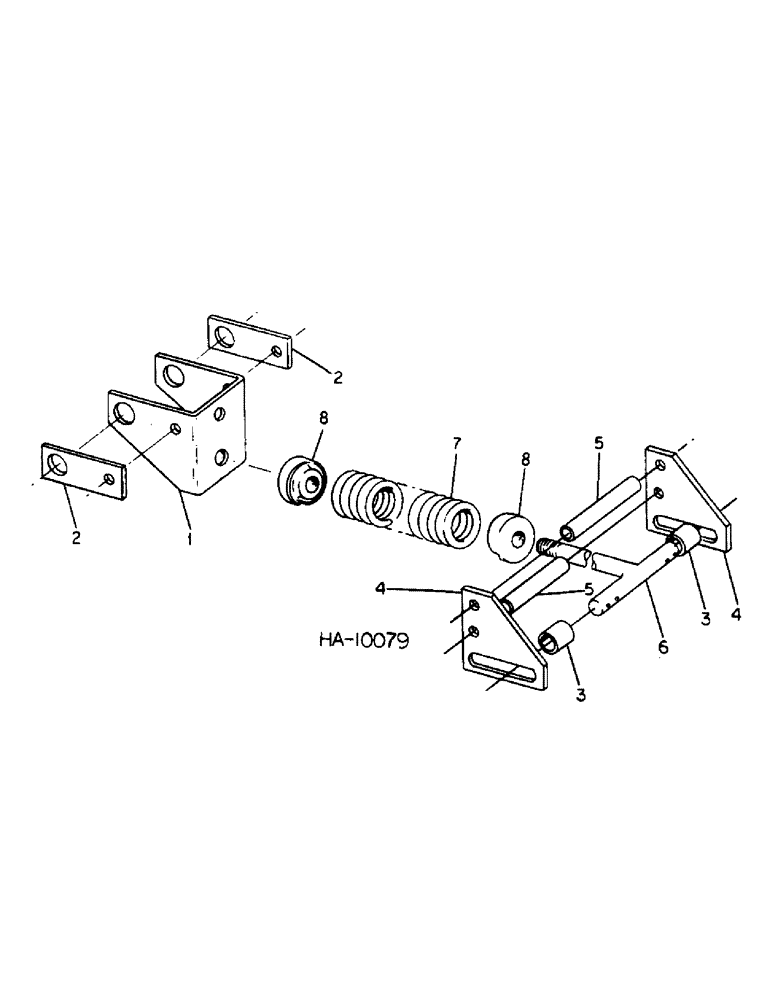

Запчасти Case IH 5500 (F-09) - WING LIFT HELPER SPRING, WING TYPE

1

810173C1

CHANNEL

spring support

2шт.

2

810168C1

BAR

channel spacer

4шт.

3

811152C1

BUSHING

spring holder

4шт.

4

810169C1

BAR

spring holder support

4шт.

5

82798R1

SPACER,1/2" X-Strng Pipe x 4 3/16"

1/2 x 4.188 extra strong

4шт.

6

810163C1

HOLDER

ASSY, spring

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

4шт.

21753R1

WASHER

.781 x 1.500 x .203 pln

8шт.

280954

NUT,3/4"-10, G5

4шт.

7

608347R1

SPRING

wing lower

2шт.

8

608348R1

RETAINER

spring

4шт.
