(9-136) - GAUGE WHEEL MOUNTING, LEVEL LIFT MODELS, VERTICAL FOLD AND DOUBLE FOLD

Запчасти Case IH 5700 (9-136) - GAUGE WHEEL MOUNTING, LEVEL LIFT MODELS, VERTICAL FOLD AND DOUBLE FOLD (18) - MISCELLANEOUS

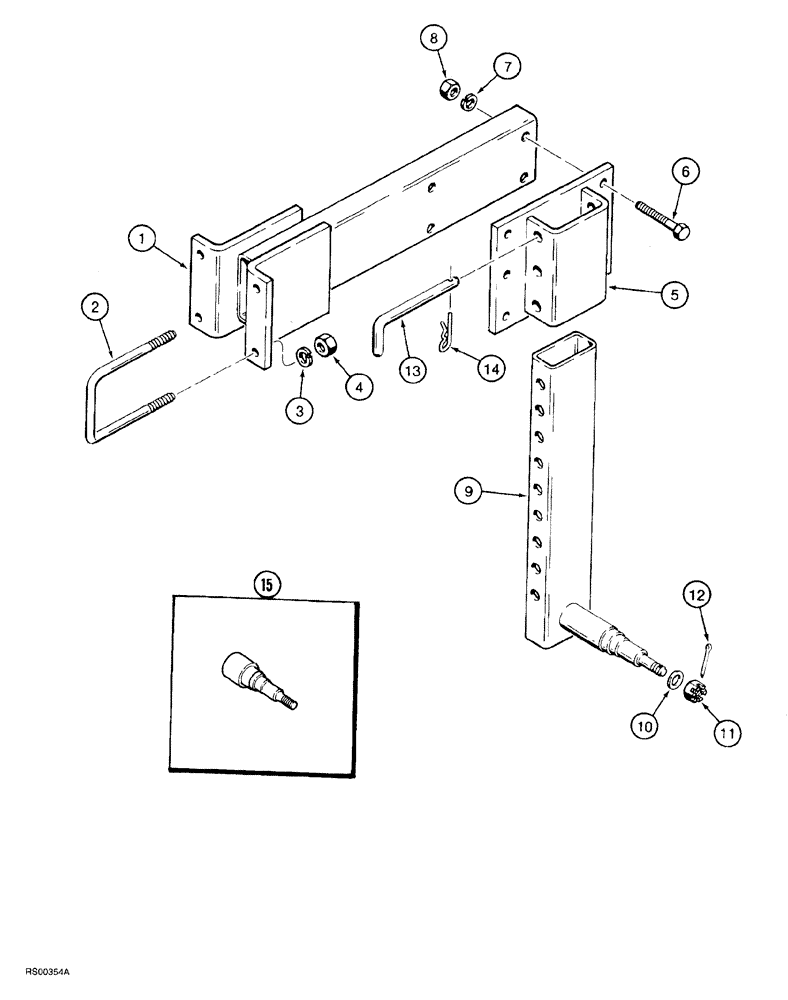

Схема запчастей Case IH 5700 - (9-136) - GAUGE WHEEL MOUNTING, LEVEL LIFT MODELS, VERTICAL FOLD AND DOUBLE FOLD (18) - MISCELLANEOUS
11
2
13
4
14
7
10
8
15
9
6
5
1
12
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

812341C1

TUBE,645 mm Length

gauge wheel mounting

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8 inch NC

4шт.

3

492-11062

BEARING WASHER,5/8"

8шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

1284351C1

SUPPORT

BRACKET axle mounting

2шт.

6

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

7

492-11062

BEARING WASHER,5/8"

8шт.

8

425-1010

NUT,5/8"-11, G5

8шт.

811542C92

AXLE

ASSEMBLY, gauge wheel

2шт.

9

NSS

NOT SOLD SEPARAT

AXLE gauge wheel, order 811542C92 axle assembly

1шт.

10

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32 x 1/4 x 1/8 inch, special

1шт.

11

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF, plated

1шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

13

811951C1

PIN

retaining

2шт.

14

1978739C1

PIN

hair, axle locking pin

2шт.

15

96131C91

SPINDLE

ASSEMBLY, repair

2шт.
