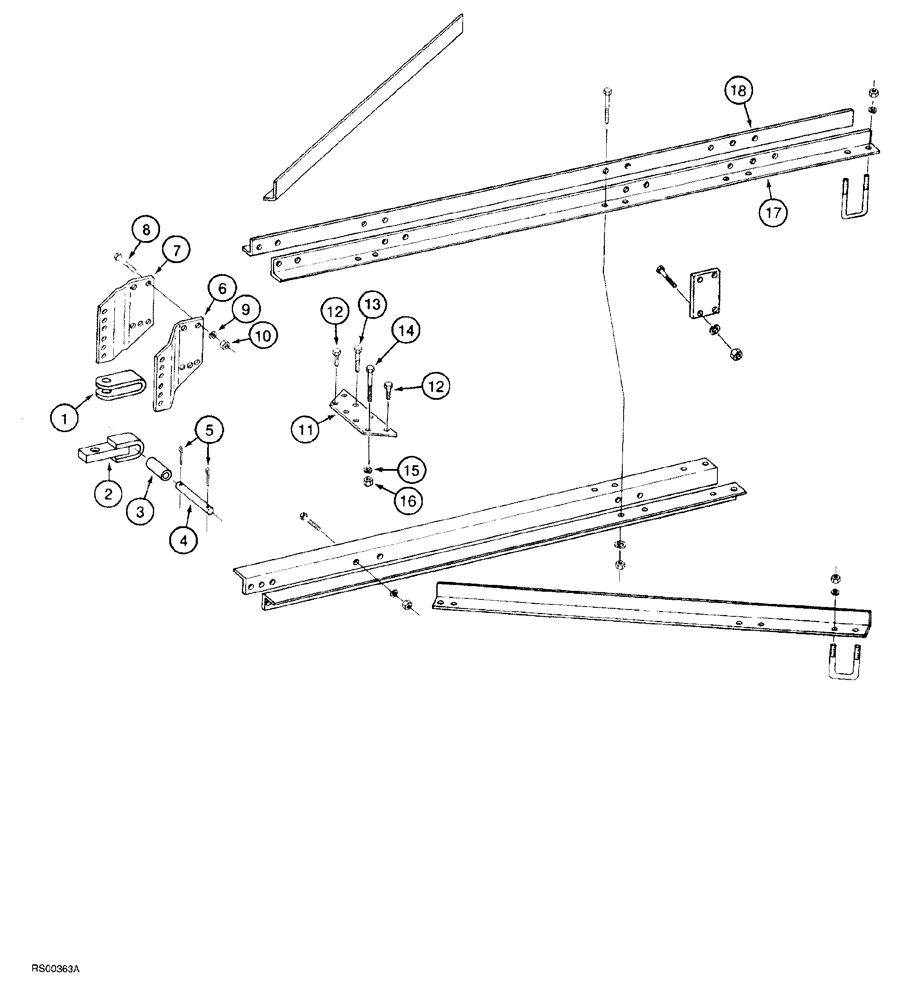

Запчасти Case IH 5700 (9-154) - TRACTOR HITCH, TRAIL BEHIND MODELS, 10 FOOT WIDE FRAME (18) - MISCELLANEOUS

1

1279227C2

TRAILER HITCH

CLEVIS, heavy duty, if used

1шт.

2

605866R91

TOW BAR

CLEVIS hitch, clevis type, heavy duty, special, if used

1шт.

3

597326R1

SPACER

hitch tongue

1шт.

4

813452C1

PIN

1 x 5-5/8 inch, clevis or tongue mounting

1шт.

5

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

6

608495R1

KNIFE SECTION

SECTION, KNIFE PLATE tractor hitch, left hand

1шт.

7

608496R1

ASSEMBLY

PLATE tractor hitch, right hand

1шт.

8

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

hex, 3/4 NC x 2-3/4 inch

5шт.

9

492-11075

LOCK WASHER,3/4"

3/4"

5шт.

10

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

5шт.

11

608281R2

BAR

PLATE connecting, hitch channel

1шт.

12

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

3шт.

13

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

hex, 5/8 NC x 1-3/4 inch

4шт.

14

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

BOLT hex, 5/8 NC x 2-1/4 inch

1шт.

15

492-11062

BEARING WASHER,5/8"

8шт.

16

425-1010

NUT,5/8"-11, G5

8шт.

17

608284R3

ANGLE

CHANNEL hitch, upper left hand, used on model 5600 trail behind chisel plows

1шт.

17

812681C1

ANGLE

CHANNEL hitch, upper left hand, used on model 5700 trail behind chisel plows

1шт.

18

608285R3

ANGLE

CHANNEL hitch, upper right hand, used on model 5600 trail behind chisel plows

1шт.

18

812682C1

ANGLE

SPARE PART CHANNEL hitch, upper right hand, used on model 5700 trail behind chisel plows

1шт.

19

608290R2

ANGLE

CHANNEL, hitch, lower left hand, used on model 5600 trail behind chisel plows

1шт.

19

812683C1

ANGLE

CHANNEL, hitch, lower left hand, used on model 5700 trail behind chisel plows

1шт.

20

608291R2

ANGLE

CHANNEL, hitch, lower right hand, used on model 5600 trail behind chisel plows

1шт.

20

812684C1

ANGLE

SPARE PART CHANNEL, hitch, lower right hand, used on model 5700 trail behind chisel plows

1шт.

21

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

hex, 5/8 NC x 5-1/2 inch

8шт.

22

492-11062

BEARING WASHER,5/8"

8шт.

23

425-1010

NUT,5/8"-11, G5

8шт.

24

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8 inch NC

2шт.

25

492-11062

BEARING WASHER,5/8"

4шт.

26

425-1010

NUT,5/8"-11, G5

4шт.

27

608297R1

ANGLE

SPARE PART CHANNEL, hitch support, left hand, used on model 5600 trail behind chisel plows

1шт.

27

812679C1

ANGLE

SPARE PART CHANNEL, hitch support, left hand, used on model 5700 trail behind chisel plows

1шт.

28

608298R1

ANGLE

CHANNEL, hitch support, right hand, used on model 5600 trail behind chisel plows

1шт.

28

812680C1

ANGLE

CHANNEL, hitch support, right hand, used on model 5700 trail behind chisel plows

1шт.

29

608301R1

U-BOLT,U, 5/8" - 11 x 5", Gr 2

BOLT "U" hitch support channel mounting

2шт.

30

492-11062

BEARING WASHER,5/8"

4шт.

31

425-1010

NUT,5/8"-11, G5

4шт.

32

594853R1

BLOCK

PLATE, channel connecting, used on model 5700 trail behind chisel plows

1шт.

33

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

BOLT hex, 5/8 NC x 2-1/4 inch, used on model 5700 trail behind chisel plows

4шт.

34

492-11062

BEARING WASHER,5/8"

Used on model 5700 trail behind chisel plows

4шт.

35

425-1010

NUT,5/8"-11, G5

Used on model 5700 trail behind chisel plows

4шт.
