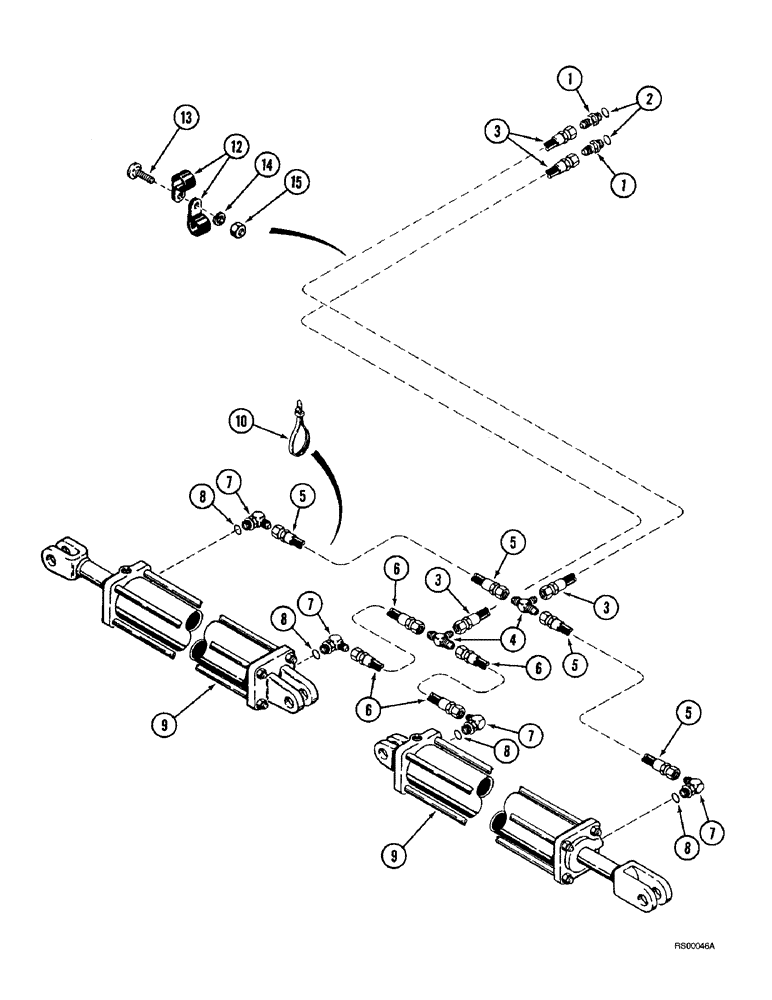

Запчасти Case IH 5800 (8-12) - WING LIFT HYDRAULIC CIRCUIT, FLAT FOLD, 19 FOOT THROUGH 27 (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

189348A1

HYDRAULIC HOSE,6.40mm ID x 7110mm L

HOSE - 7110 mm (280 inch) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

2шт.

5

147878C1

HOSE

- 1650 mm (65 inch) long

2шт.

6

147876C1

HYDRAULIC HOSE

HOSE - 1143 mm (45 inch) long

2шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

4шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

1272149C92

CYLINDER,Double Acting, 38.1mm Rod, 406.4mm Stroke

ASSEMBLY - 89 (3-1/2) ID x 406 mm (16 inch) stroke (19 foot through 23 foot wide)(See Page 8-31)

2шт.

9

1272149C92R

REMAN-HYD CYLINDER

5800 CASE IH CHISEL PLOW, ASSEMBLY

2шт.

9

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

9

1272150C91

CYLINDER

ASSEMBLY - 102 (4) ID x 406 mm (16 inch) stroke (25 foot and 27 foot wide)(See Page 8-33)

2шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.

12

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

14

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.
