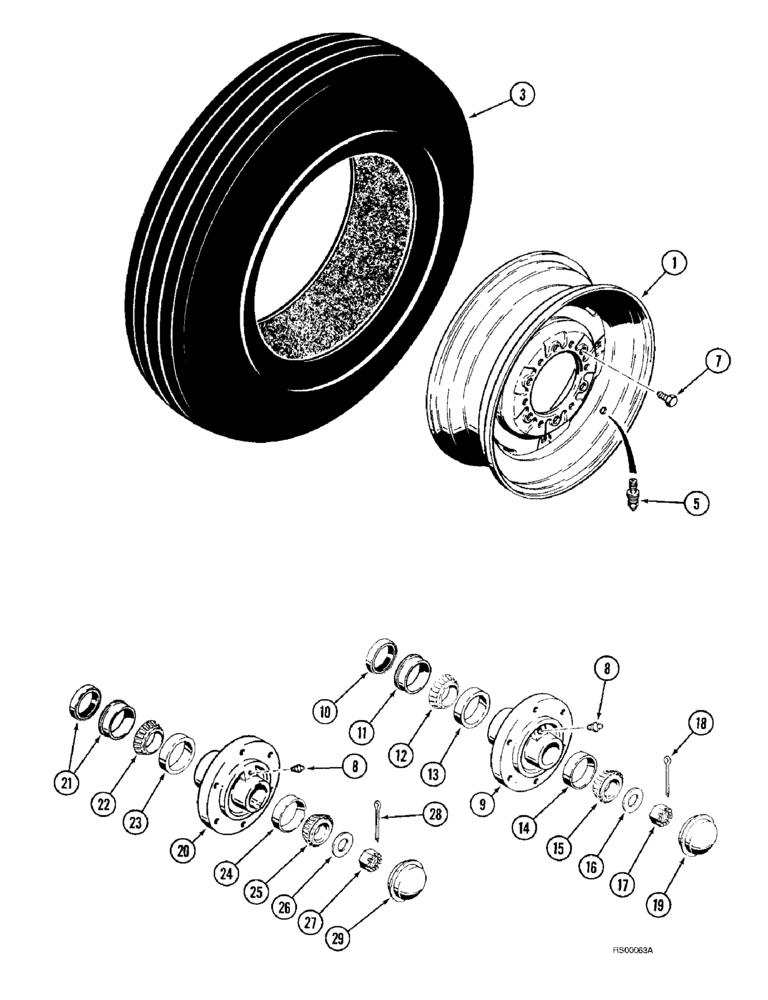

Запчасти Case IH 5800 (9-12) - WHEELS AND HUBS, MAIN FRAME, COMMON PARTS, FLAT FOLD (09) - CHASSIS/ATTACHMENTS

1

A57879

RIM

WHEEL - 15 x 8 inch

4шт.

3

REF

INSTRUCTION

TIRE - 9.5L - 15, 8 ply rating, purchase locally (19 foot through 43 foot wide)

4шт.

3

REF

INSTRUCTION

TIRE - 11L - 15, 12 ply rating, purchase locally (43 foot through 53 foot wide)

4шт.

5

810769C1

VALVE

- inflation

4шт.

7

277538A1

BOLT,1/2" - 20 x 1.42"

- hex conical, 1/2 NF x 1-5/32 inch (Replaces 549962R1)

24шт.

8

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

9

810087C2

HUB

- wheel, six bolt mount

4шт.

10

472222R1

SLEEVE

- oil seal

4шт.

11

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

- oil

4шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

4шт.

13

651817R1

BEARING CUP

CUP - tapered roller bearing

4шт.

14

651814R1

BEARING CUP

CUP - tapered roller bearing

4шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE - tapered roller bearing

4шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

4шт.

16

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

- flat, special, 25/32 x 1/4 x 1/8 inch

4шт.

17

425-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex, slotted, 3/4 inch NF

4шт.

18

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

4шт.

19

B13280

HUB CAP

CAP - wheel hub

4шт.

20

606468R21

HUB

ASSEMBLY - wheel, 6 bolt

4шт.

21

606556R91

OIL SEAL

SEAL - oil, with sleeve

4шт.

22

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, 1-5/8 inch ID

4шт.

23

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD

4шт.

24

651817R1

BEARING CUP

CUP - tapered roller bearing

4шт.

25

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

4шт.

26

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch

4шт.

27

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted, special, 7/8 inch NC

4шт.

28

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

4шт.

29

224066C1

HUB CAP

CAP - wheel hub

4шт.
