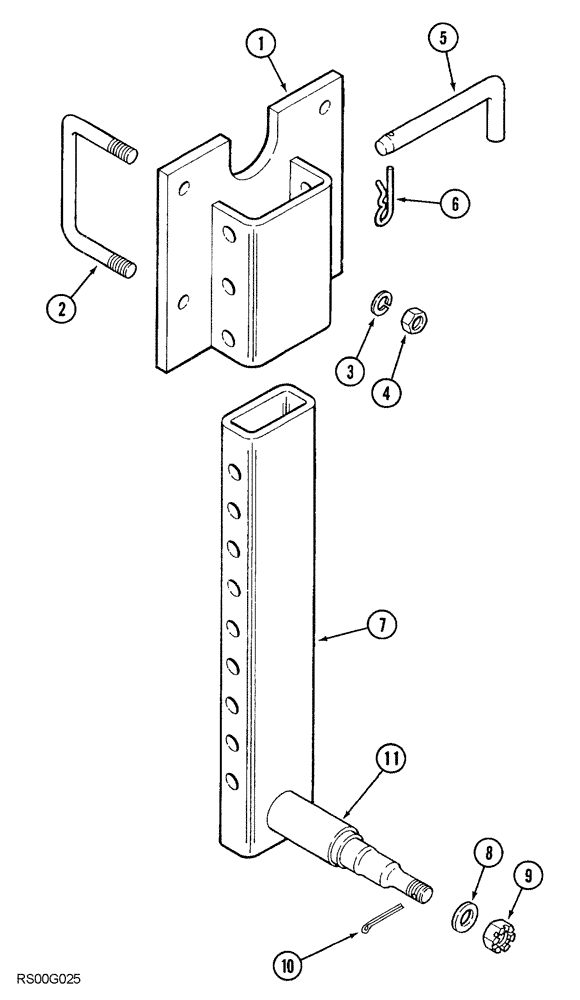

Запчасти Case IH 5850 (09-56) - GAUGE WHEEL, PIN ADJUSTABLE (09) - CHASSIS

179411A2

ATTACHMENT gauge wheel, pin adjustable

1шт.

1

179090A1

SUPPORT

gauge wheel

2шт.

2

811627C2

U-BOLT

5/8" NC, 2" x 5"

4шт.

3

492-11062

BEARING WASHER,5/8"

8шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

811951C1

PIN

retaining

2шт.

6

1978739C1

PIN

hair

2шт.

7

811542C92

AXLE

ASSEMBLY gauge wheel

2шт.

8

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32" x 1/4" x 1/8"

1шт.

9

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4" NF

1шт.

10

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

11

NSS

NOT SOLD SEPARAT

SPINDLE ASSEMBLY axle

1шт.
