(09-60) - GAUGE WHEEL, VERTICAL FOLD AND DOUBLE FOLD

Запчасти Case IH 5850 (09-60) - GAUGE WHEEL, VERTICAL FOLD AND DOUBLE FOLD (09) - CHASSIS

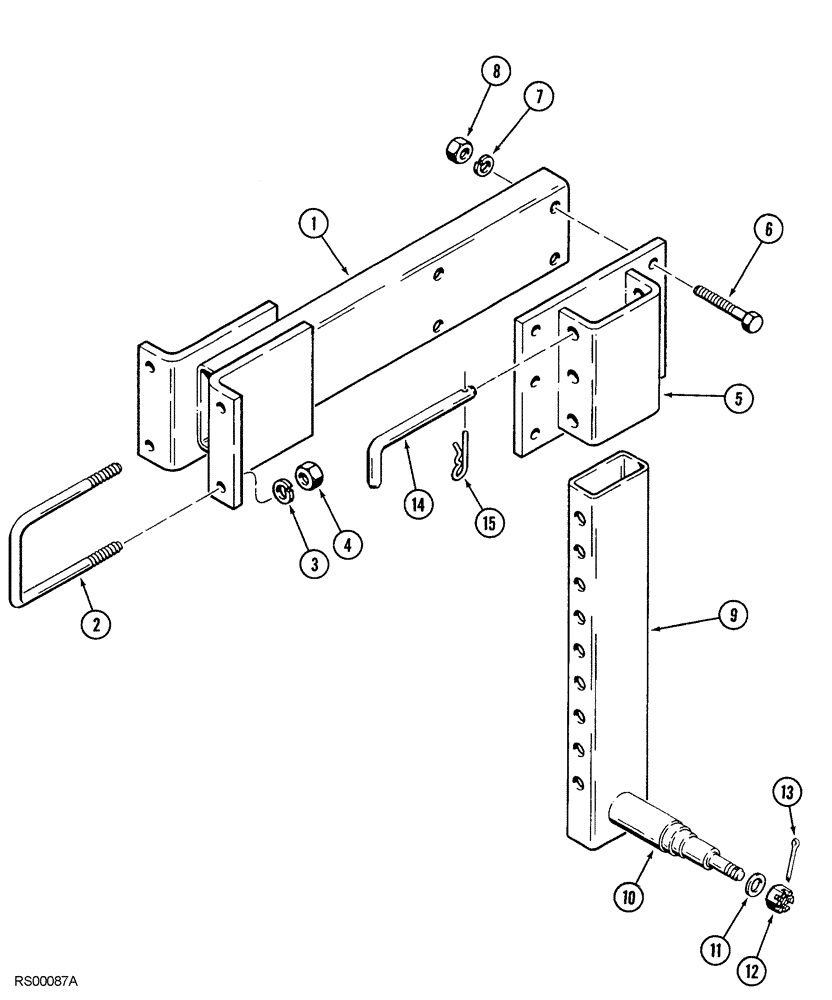

Схема запчастей Case IH 5850 - (09-60) - GAUGE WHEEL, VERTICAL FOLD AND DOUBLE FOLD (09) - CHASSIS
11
8
7
9
14
12
5
3
15
1
13
6
4
2
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

185223A1

ATTACHMENT gauge wheel

1шт.

1

812341C1

TUBE,645 mm Length

mounting, gauge wheel

2шт.

2

608294R1

U-BOLT,U, 5/8" - 11 x 134mm

BOLT "U" 5/8" NC

4шт.

3

492-11062

BEARING WASHER,5/8"

8шт.

4

425-1010

NUT,5/8"-11, G5

8шт.

5

1284351C1

SUPPORT

BRACKET axle mounting

2шт.

6

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

8шт.

7

492-11062

BEARING WASHER,5/8"

8шт.

8

425-1010

NUT,5/8"-11, G5

8шт.

9

811542C92

AXLE

ASSEMBLY gauge wheel

2шт.

10

NSS

NOT SOLD SEPARAT

SPINDLE ASSEMBLY axle

1шт.

11

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32" x 1/4" x 1/8"

1шт.

12

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4" NF

1шт.

13

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

14

811951C1

PIN

retaining

2шт.

15

1978739C1

PIN

hair

2шт.
