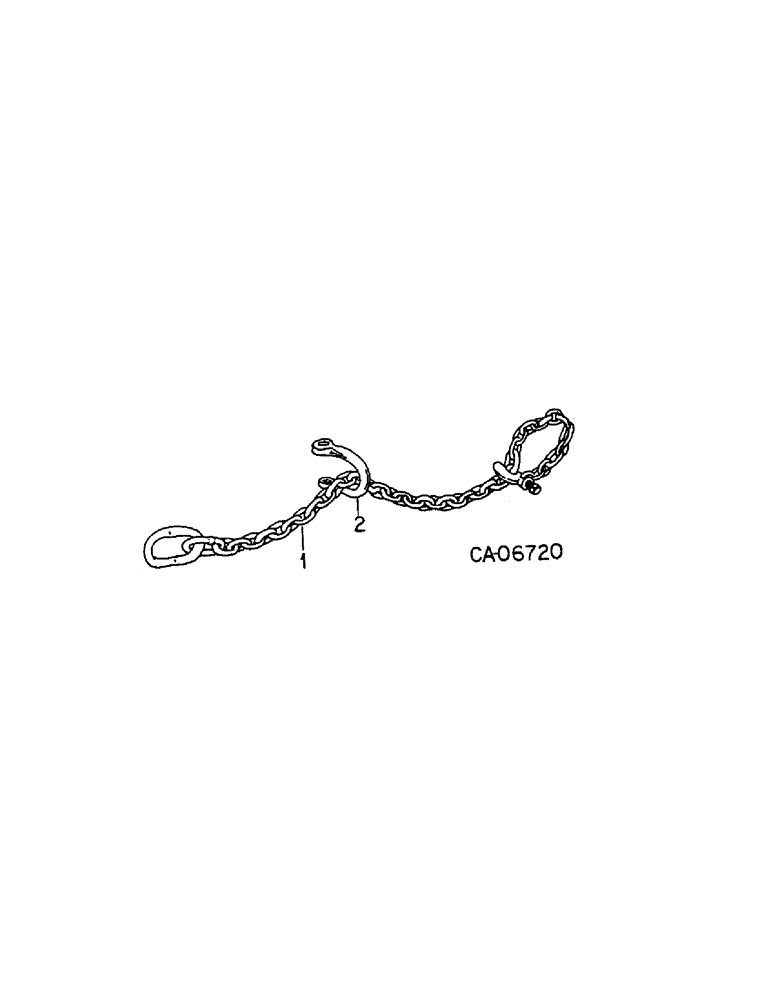

Запчасти Case IH 645 (B-10[A]) - 645 VIBRA CHISEL, TRAIL BEHIND, SAFETY CHAIN EQUIPMENT

1

100682C2

CHAIN (AG)

CHAIN, safety

1шт.

2

S9173A

CLEVIS

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

5/8 x 3-1/2 type 5

1шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8 pln P/T lock type 5

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

1шт.

26512R1

WASHER

.781 x 2.000 x .164

1шт.

18444R1

NUT,3/4"-10, GB

3/4 pln P/T lock type 5

1шт.

61913C92

PACKAGE

chain hardware, consists of ref no. 2 and attaching hardware

1шт.
