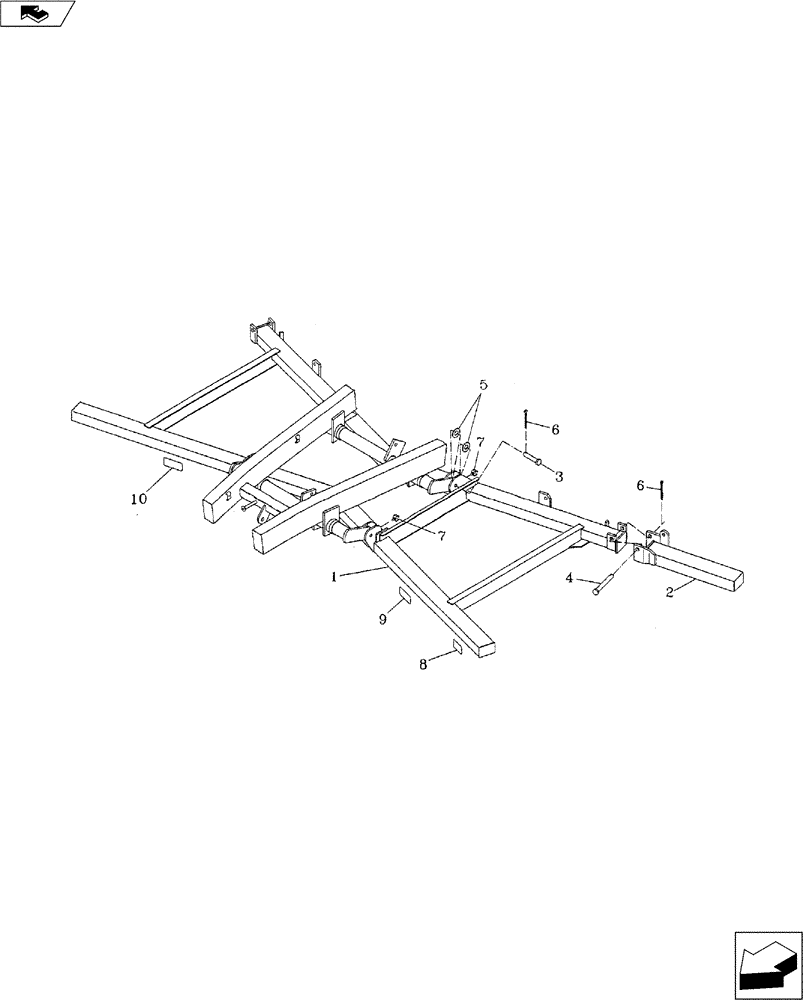

Запчасти Case IH 730 (39.100.02) - DISC ATTACHMENT (39) - FRAMES AND BALLASTING

1

09988530B

BAR ASSY.

1шт.

1

09988730B

BAR ASSY.

1шт.

2

09983700

R.H. (7-Shank)

1шт.

2

09983720

BAR ASSY.

Disc Frame Wing, L.H. (7-Shank)

1шт.

3

14816382

SMALL PIN

1 " x 3-3/4" Clevis

4шт.

4

14820725

CLEVIS

1-1/4" O.D. x 9-3/8" E.L. Pin

2шт.

5

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

1" Machine

1шт.

6

NSS

NOT SOLD SEPARAT

1/4" x 1-1/2" Cotter Pin

6шт.

7

NSS

NOT SOLD SEPARAT

1/8" NPT Self-Tapping Zerk

4шт.

8

18534243

REFLECTOR

Amber

1шт.

9

18534223

DECAL

Torque

1шт.

10

18534261

DECAL

DMI

1шт.
