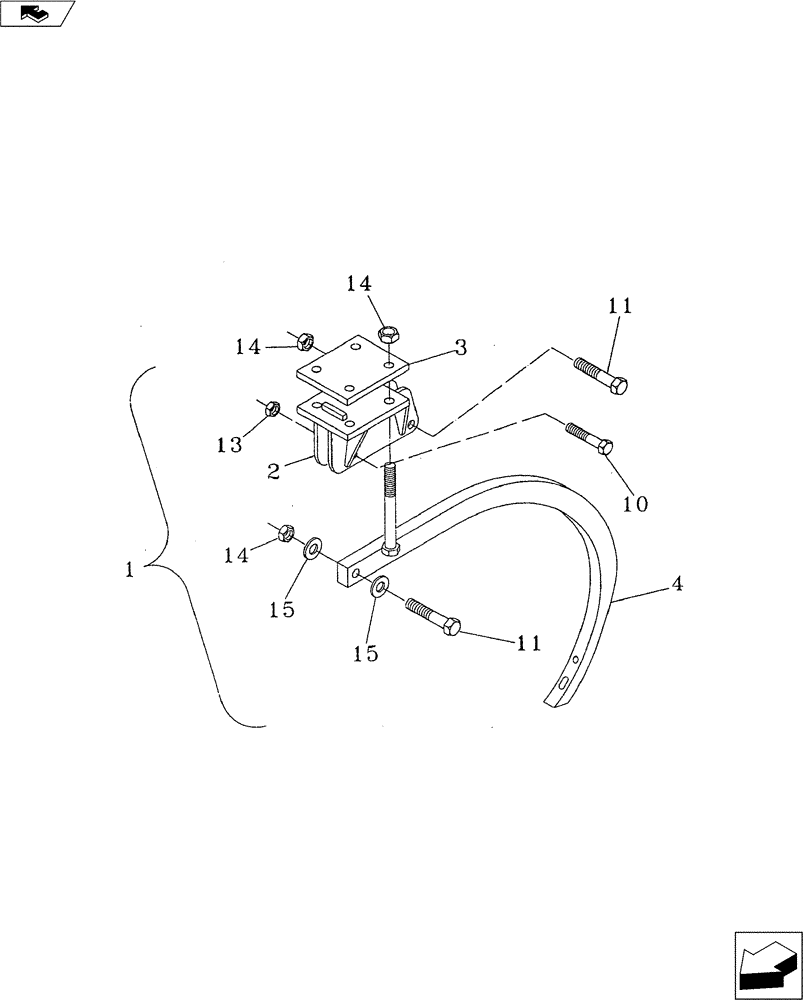

Запчасти Case IH 900 (75.200.04) - SHEAR BOLT SHANK (75) - SOIL PREPARATION

2

09580900

MOUNTING PARTS

Shear Bolt Edge

1шт.

3

09575220

PLATE

1шт.

4

33020022

SHANK

1-1/4" Edge Bent

1шт.

10

424-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 2

1шт.

11

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

3шт.

12

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

8-1/2"

4шт.

13

425-108

NUT,1/2" - 13, Gr 5

1шт.

14

425-1012

NUT,3/4"-10, G5

7шт.

15

09575270

SPACER

3/4" Special Washer 1/2" Thick

2шт.
