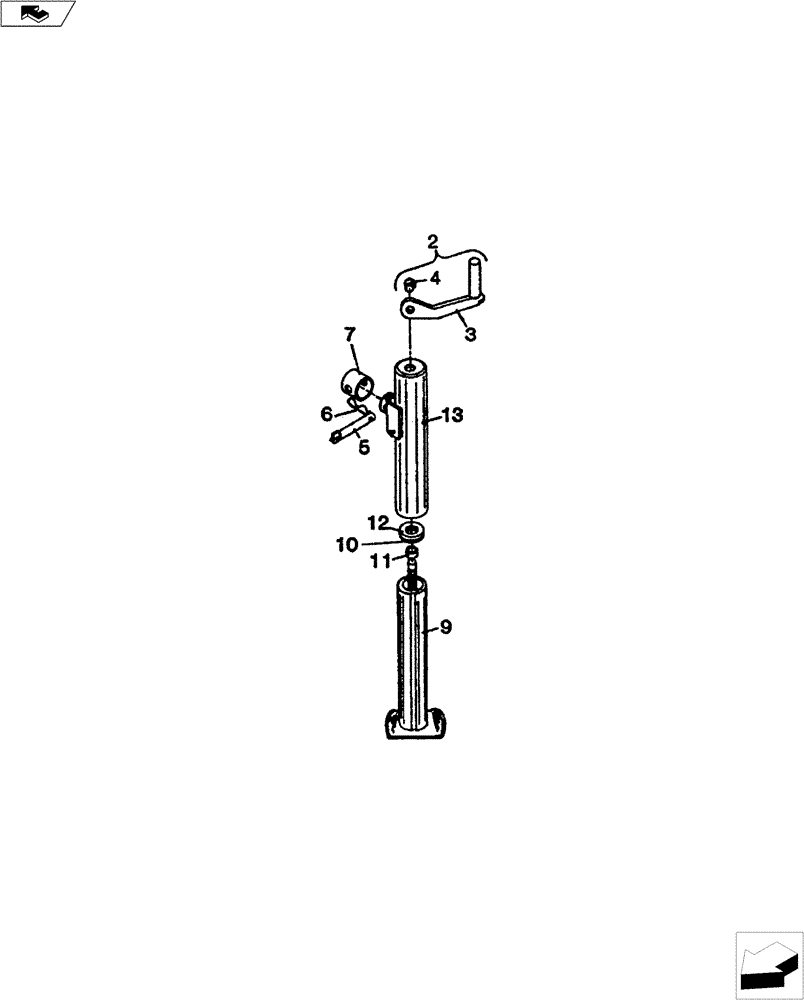

Запчасти Case IH COULTER (39.110.01) - JACK ASSEMBLY (39) - FRAMES AND BALLASTING

1

84533450

JACK

5000 lb

1шт.

2

32210740

CYLINDER ASSY.

Handle Replacement Kit, Includes Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.

4

32250225

1шт.

5

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" Dia. X 3-1/8" El Clevis

1шт.

6

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

1шт.

7

09311040

TUBE,1.3" ID, 2" OD, 2.62" Length

Mounting Bracket (1.300 ID x 2")

1шт.

8

32220002

CYLINDER ASSY.

lnner Ram Kit, Includes Ref. 4, 10-12 (Not Shown)

1шт.

9

NSS

NOT SOLD SEPARAT

lnner Ram

1шт.

10

21890751

Thrust

1шт.

11

32220004

Felt

1шт.

12

21890750

THRUST BEARING

1шт.

13

NSS

NOT SOLD SEPARAT

Outer Housing

1шт.
