(39.100.02) - 5-POINT A.A. KIT

Запчасти Case IH COULTER CHAMP (39.100.02) - 5-POINT A.A. KIT (39) - FRAMES AND BALLASTING

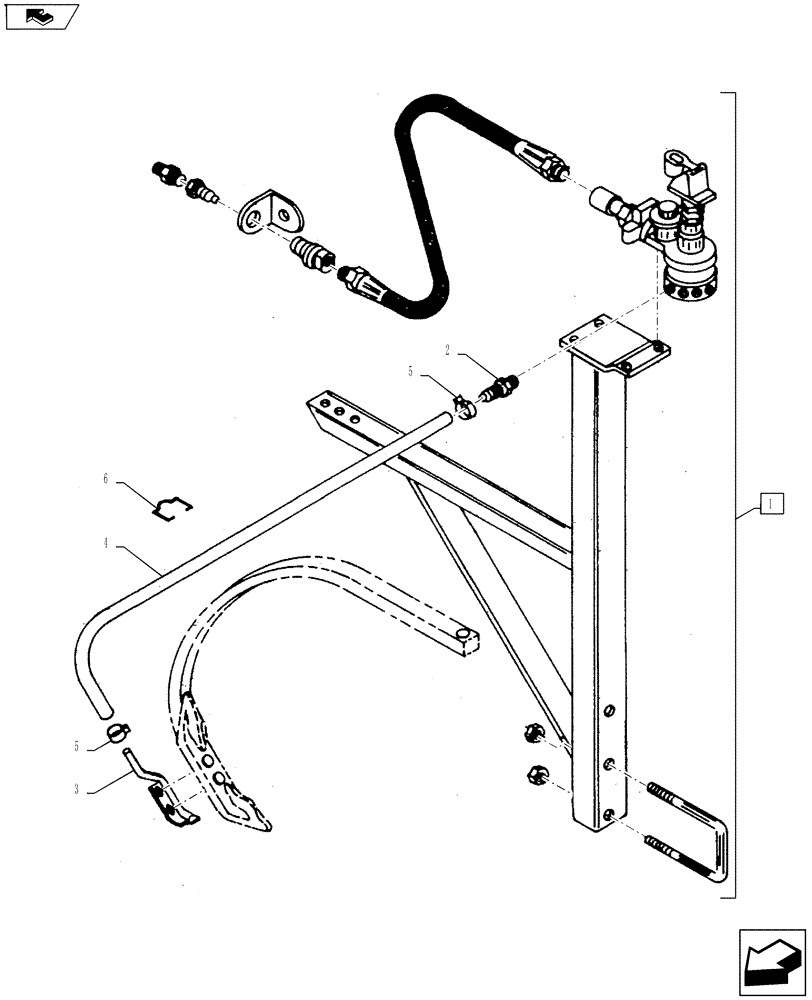

Схема запчастей Case IH COULTER CHAMP - (39.100.02) - 5-POINT A.A. KIT (39) - FRAMES AND BALLASTING
1
5
3
5
6
4
home
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

02250040

REGULATOR

Continental Assembly, Includes Ref. 2-6

1шт.

1

02300090

REGULATOR

Squibb Assembly, Includes Ref. 2-6

1шт.

2

15040121

ADAPTER

1/8 NPTBarb (Continental)

5шт.

2

15040254

HOSE

1/4 NPT Barb (Squibb)

5шт.

3

02145000

TUBE

AA

5шт.

4

25630600

HOSE

3/8 ID Plastic

1шт.

5

22510600

3/8

10шт.

6

22510802

1/2"

5шт.
