(39.110.02) - JACK ASN 201001

Запчасти Case IH COULTER CHAMP (39.110.02) - JACK ASN 201001 (39) - FRAMES AND BALLASTING

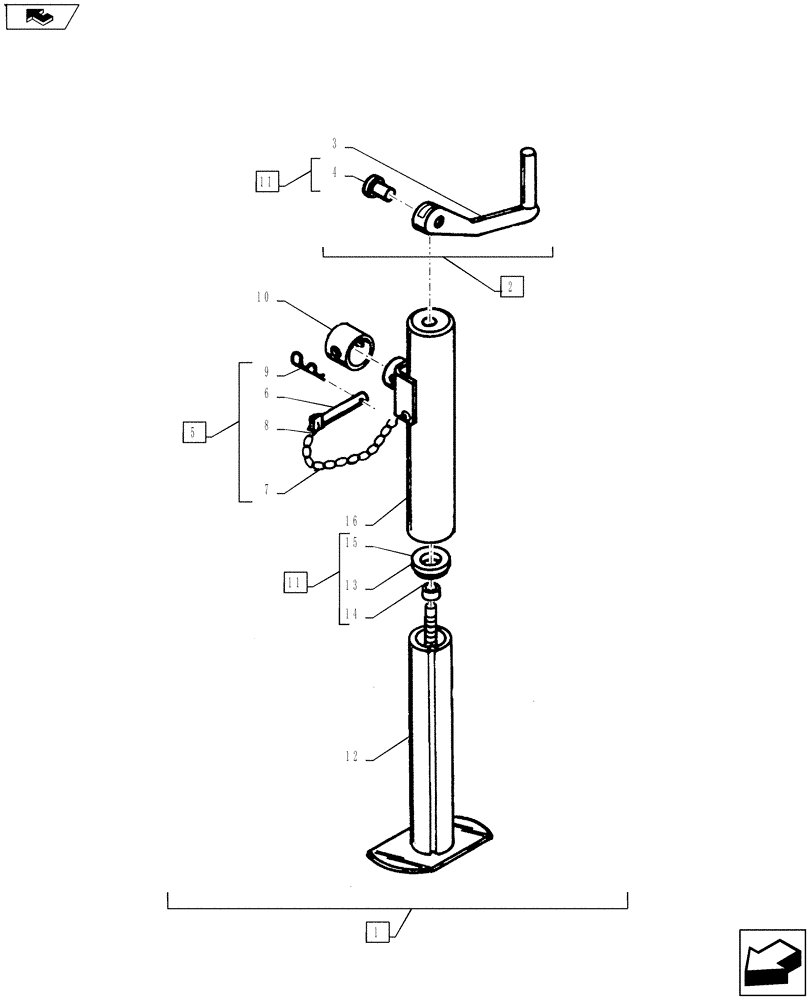

Схема запчастей Case IH COULTER CHAMP - (39.110.02) - JACK ASN 201001 (39) - FRAMES AND BALLASTING
12
7
8
16
11
1
6
3
2
13
14
15
9
10
11
5
4
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

32252000

JACK ASSY.

5000, Includes Ref. 2-16

1шт.

2

32210740

CYLINDER ASSY.

Handle Replacement Kit, Includes Ref. 3-4

1шт.

3

NSS

NOT SOLD SEPARAT

Jack Handle

1шт.

4

32250225

1шт.

5

32250001

REPAIR KIT

Locking, Includes Ref. 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

Locking Pin

1шт.

7

NSS

NOT SOLD SEPARAT

Chain

1шт.

8

NSS

NOT SOLD SEPARAT

S-Hook

2шт.

9

NSS

NOT SOLD SEPARAT

Hairpin

1шт.

10

09937112

GUIDE BUSHING

Mounting Bracket

1шт.

11

32220002

CYLINDER ASSY.

Inner Ram Kit, Includes Ref. 4 & 13-15

1шт.

12

NSS

NOT SOLD SEPARAT

Inner Ram

1шт.

13

21890751

1шт.

14

32220004

1шт.

15

21890750

THRUST BEARING

1шт.

16

NSS

NOT SOLD SEPARAT

Outer Housing

1шт.
