(39.110.03) - REAR HITCH ASSY

Запчасти Case IH COULTER CHAMP (39.110.03) - REAR HITCH ASSY (39) - FRAMES AND BALLASTING

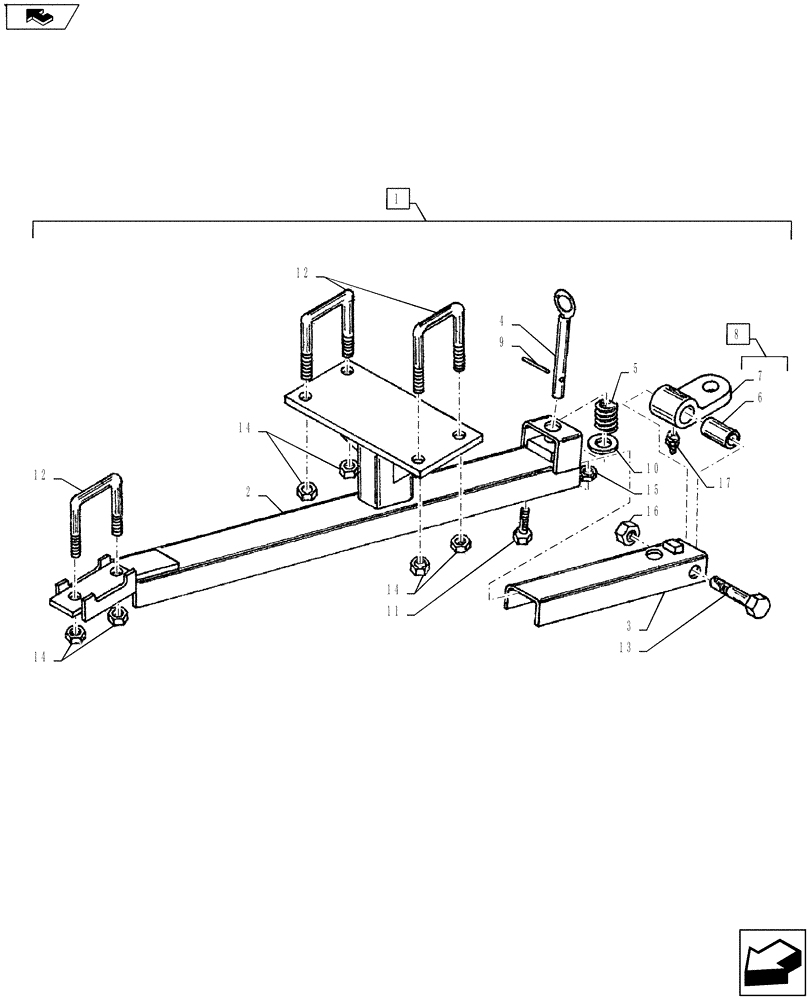

Схема запчастей Case IH COULTER CHAMP - (39.110.03) - REAR HITCH ASSY (39) - FRAMES AND BALLASTING
16
14
13
8
1
14
home
6
4
11
2
12
17
14
15
5
9
12
7
10
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

02468000

Includes Ref. 2-17

1шт.

2

09249000

1шт.

3

09248000

CHANNEL

Hitch

1шт.

4

14816245

HITCH PIN

1" ø

1шт.

5

24111200

SPRING

Compression

1шт.

6

02135000

TUBE

Spacer

1шт.

7

20092081

SUPPORT

Hitch Casting

1шт.

8

02134100

TOW BAR

Hitch Casting W/Bushing, Includes Ref. 6-7

1шт.

9

NSS

NOT SOLD SEPARAT

1/4" ø Roll Pin

1шт.

10

NSS

NOT SOLD SEPARAT

1 " Mach. Washer

1шт.

11

16010044

SCREW

5/8" x 1" NC Cap Gd. 5

1шт.

12

16310011

U-BOLT

BOLT "U" 5/8" x 4" x 5 1/2" Lg.

1шт.

13

NSS

NOT SOLD SEPARAT

3/4" x 4 1/2" NC Cap Screw

1шт.

14

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

6шт.

15

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Lock Nut

1шт.

16

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

1шт.

17

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.
