(75.200.03) - AUTOMATIC RESET SHANK ASSY

Запчасти Case IH COULTER CHAMP (75.200.03) - AUTOMATIC RESET SHANK ASSY (75) - SOIL PREPARATION

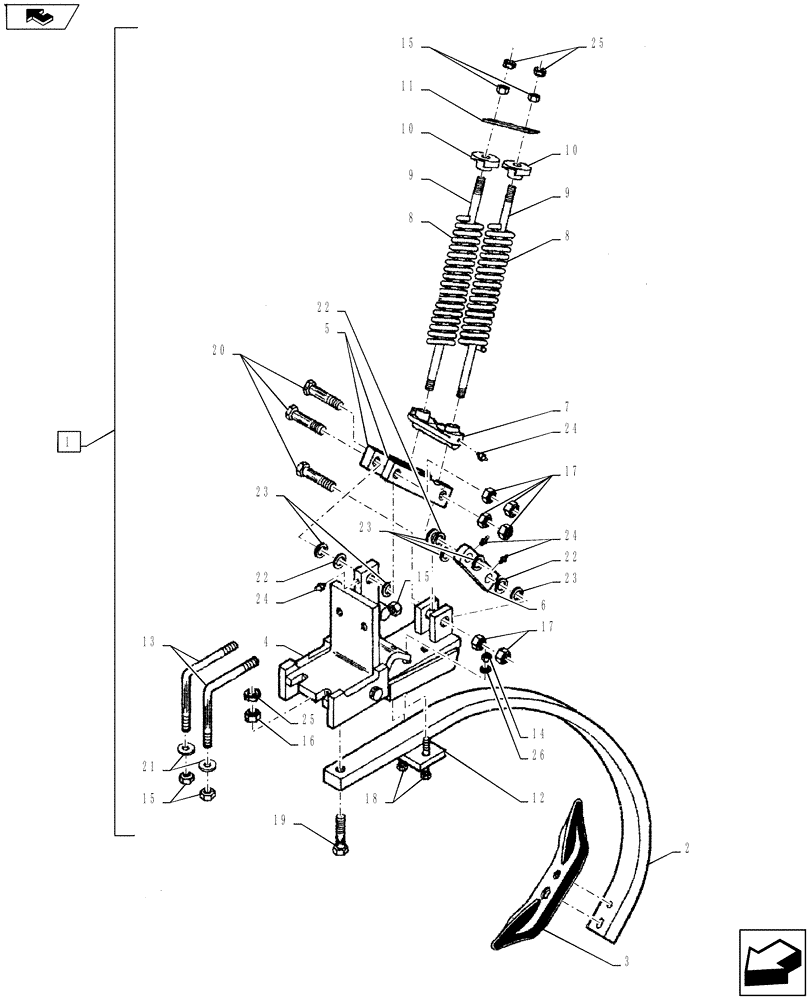

Схема запчастей Case IH COULTER CHAMP - (75.200.03) - AUTOMATIC RESET SHANK ASSY (75) - SOIL PREPARATION
22
17
15
22
12
16
23
9
17
14
20
18
11
4
6
22
25
home
26
9
13
3
10
15
23
7
24
24
5
15
8
21
24
25
8
10
1
19
2
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

09562000

KIT

Auto Reset Assembly, Includes Ref. 4-26

1шт.

2

33020032

SHANK

1 1/4" x 2" x 32"

1шт.

3

33310041

POINT

Heavy Duty Chisel W/Hardware (See Chisel Point Figure)

1шт.

4

09561000

MOUNTING PARTS

Pivot Assy.

1шт.

5

09563000

UPPER LINK

Bar

2шт.

6

09564000

LOWER LINK

Bar

1шт.

7

09565100

HOLDER

Spring Casting

1шт.

8

24156203

SPRING

Compression

2шт.

9

16909128

ROD

2шт.

10

20090050

HOLDER

Spring Casting

2шт.

11

09566000

1шт.

12

09568000

PLATE

Flat

1шт.

13

16512470

SPECIAL BOLT

Bent Threaded Rod

2шт.

14

NSS

NOT SOLD SEPARAT

5/8" NC Hex. Nut

2шт.

15

NSS

NOT SOLD SEPARAT

3/4" NC Hex. Nut

8шт.

16

NSS

NOT SOLD SEPARAT

3/4" NC Heavy Hex. Nut

1шт.

17

NSS

NOT SOLD SEPARAT

7/8" NC Hex. Jam Nut

6шт.

18

16010155

BOLT

5/8" x 3 3/4" NC Gd. 5

2шт.

19

16012148

BOLT

3/4" x 3 1/2" NC Gd. 8

1шт.

20

16901413

BOLT

7/8" x 3 1/4" NC Special Hex.

3шт.

21

17413011

WASHER

3/4" x .24 Thick

2шт.

22

17614010

BUSHING

7/8" Mach. 18 Ga.

3шт.

23

17614020

BUSHING

7/8" Mach. 14 Ga.

6шт.

24

NSS

NOT SOLD SEPARAT

1/4-28 Thd. Grease Zerk

5шт.

25

NSS

NOT SOLD SEPARAT

3/4" NC Jam Nut

3шт.

26

NSS

NOT SOLD SEPARAT

5/8" Lock Washer

2шт.
