(75.200.04) - SPRING LOADED COLTER ASSY

Запчасти Case IH COULTER CHAMP (75.200.04) - SPRING LOADED COLTER ASSY (75) - SOIL PREPARATION

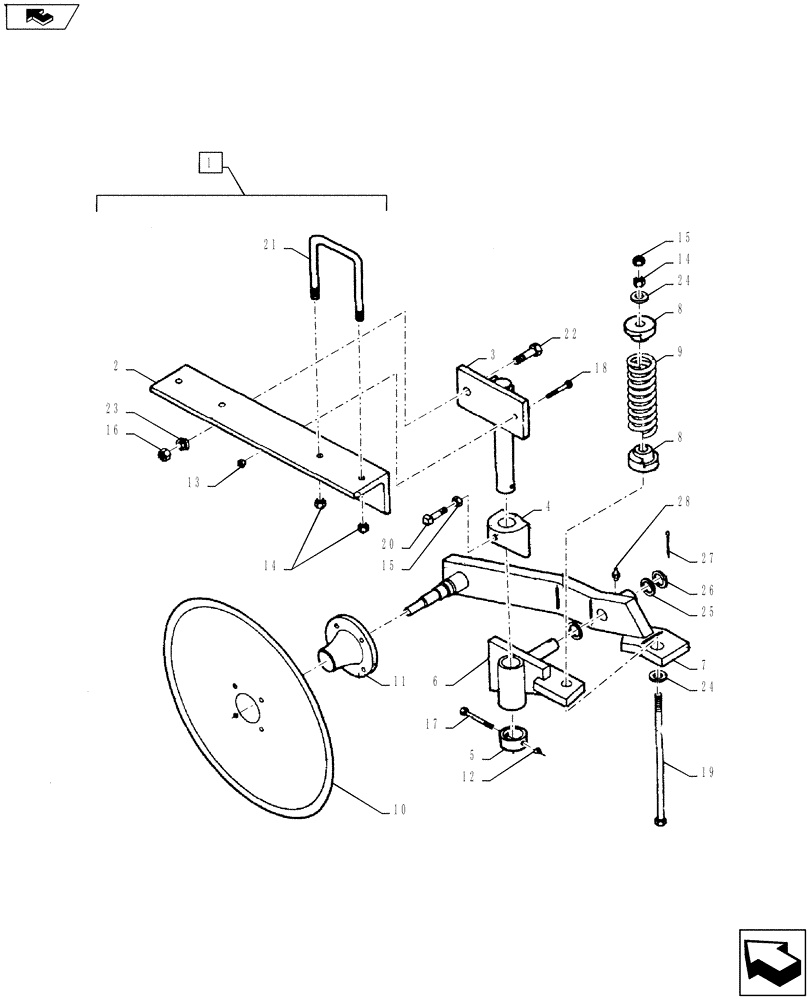

Схема запчастей Case IH COULTER CHAMP - (75.200.04) - SPRING LOADED COLTER ASSY (75) - SOIL PREPARATION
12
10
8
5
25
2
13
18
home
11
8
28
27
9
1
23
24
15
6
17
24
21
19
14
4
15
22
3
7
20
16
14
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

09558200

Coulter Mounting Bundle, Includes Ref. 2, 13-14, 16, 21, 23

1шт.

2

09558220

Mounting Angle

1шт.

3

09559200

SHAFT

Colter

1шт.

4

20092011

STOP

Colter Pivot

1шт.

5

49529000

PIPE

Colter Bottom Collar

1шт.

6

49325000

MOUNTING PARTS

Upper

1шт.

7

49326000

SUPPORTING ARM

1шт.

8

20090050

HOLDER

Spring Casting

2шт.

9

24156205

COIL SPRING

1шт.

10

33502440

PLOW DISC

24" Colter Blade

1шт.

11

28163300

HUB ASSY.

Q-633 4-Bolt

1шт.

See Figure 44.100.01

1шт.

12

NSS

NOT SOLD SEPARAT

3/8 NC Hex. Nut

1шт.

13

NSS

NOT SOLD SEPARAT

7/16 NC Hex. Nut

1шт.

14

NSS

NOT SOLD SEPARAT

5/8 NC Hex. Nut

5шт.

15

NSS

NOT SOLD SEPARAT

5/8 NC Jam Nut

2шт.

16

NSS

NOT SOLD SEPARAT

3/4 NC Hex. Nut

1шт.

17

NSS

NOT SOLD SEPARAT

3/8 x 3 NC Cap Screw

1шт.

18

16007084

7/16 x 2 NC Gd. 5

1шт.

19

16010560

CAPSCREW

5/8 x 14 NC Hex. Bolt

1шт.

20

16810064

SET SCREW

5/8 x 1 1/2 Sq. Head

1шт.

21

16310011

U-BOLT

BOLT "U" 5/8 x 4 x 5 1/2 NC

2шт.

22

16012084

3/4 x 2 NC Gd. 5

1шт.

23

NSS

NOT SOLD SEPARAT

3/4 Lock Washer

1шт.

24

17411012

WASHER

11/16 ID x 1 3/4 OD x 1/4 Thick

2шт.

25

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4 Mach. 14 Ga.

2шт.

26

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4 Mach. 10 Ga.

1шт.

27

NSS

NOT SOLD SEPARAT

1/4 x 1-1/2 Cotter Pin

1шт.

28

NSS

NOT SOLD SEPARAT

1/8 NPT Zerk

1шт.
