(35.100.05) - HYDRAULIC CYLINDER - 3" X 16" (9 & 11 SHANK ONLY ASN 201052)

Запчасти Case IH COULTER CHAMP (35.100.05) - HYDRAULIC CYLINDER - 3" X 16" (9 & 11 SHANK ONLY ASN 201052) (35) - HYDRAULIC SYSTEMS

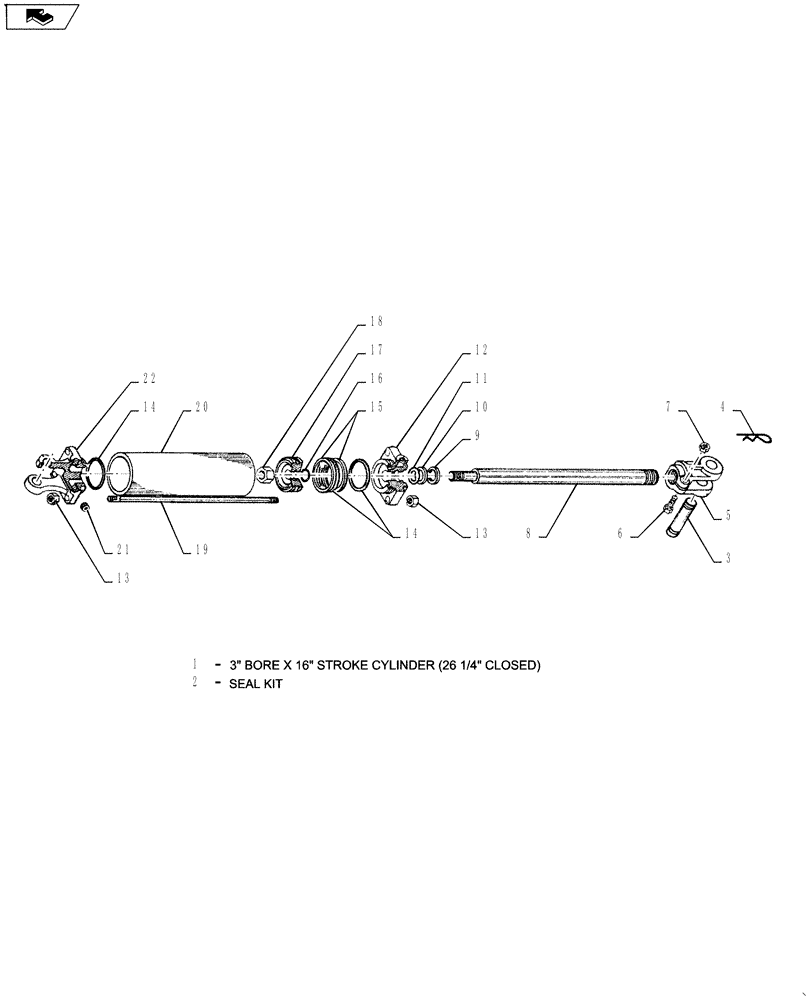

Схема запчастей Case IH COULTER CHAMP - (35.100.05) - HYDRAULIC CYLINDER - 3" X 16" (9 & 11 SHANK ONLY ASN 201052) (35) - HYDRAULIC SYSTEMS
14
20
6
12
10
8
14
13
17
18
15
5
7
3
home
4
13
16
11
9
22
19
1
21
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25030166

HYDRAULIC CYLINDER

3" x 16", 26-1/4" Closed, Main Lift, 9 and 11 Shank Only, Start Serial: 201052

1шт.

2

25803011

KIT

Seal Kit For 3" Bore W/1-1/2 ø Rod

1шт.

3

14816223

1 ø x 2-3/4 EL (Hardened)

2шт.

4

NSS

NOT SOLD SEPARAT

1/8 ø #11 Hair Pi

4шт.

5

25803012

CLEVIS

Casting, Rod End

1шт.

6

NSS

NOT SOLD SEPARAT

3/8 x 1-3/4 NC Hex. Bolt

1шт.

7

NSS

NOT SOLD SEPARAT

3/8 NC Hex. Lock Nut

1шт.

8

25803023

ROD

1 1/2 ø For 16" Stroke Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Wiper Seal, See Ref. 2

1шт.

10

NSS

NOT SOLD SEPARAT

Back-Up Washer, See Ref. 2

1шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

12

25803014

HEAD

Cylinder

1шт.

13

25803021

NUT

Hex.

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

3шт.

15

NSS

NOT SOLD SEPARAT

Back-Up Seal, See Ref. 2

2шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, See Ref. 2

1шт.

17

25803015

1шт.

18

25803022

NUT

Hex.

1шт.

19

25803016

THREADED TIE-ROD

4шт.

20

25803024

BARREL

For 3" Bore x 16" Stroke Cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

1/2 NPT Pipe Plug

1шт.

22

25803018

1шт.
