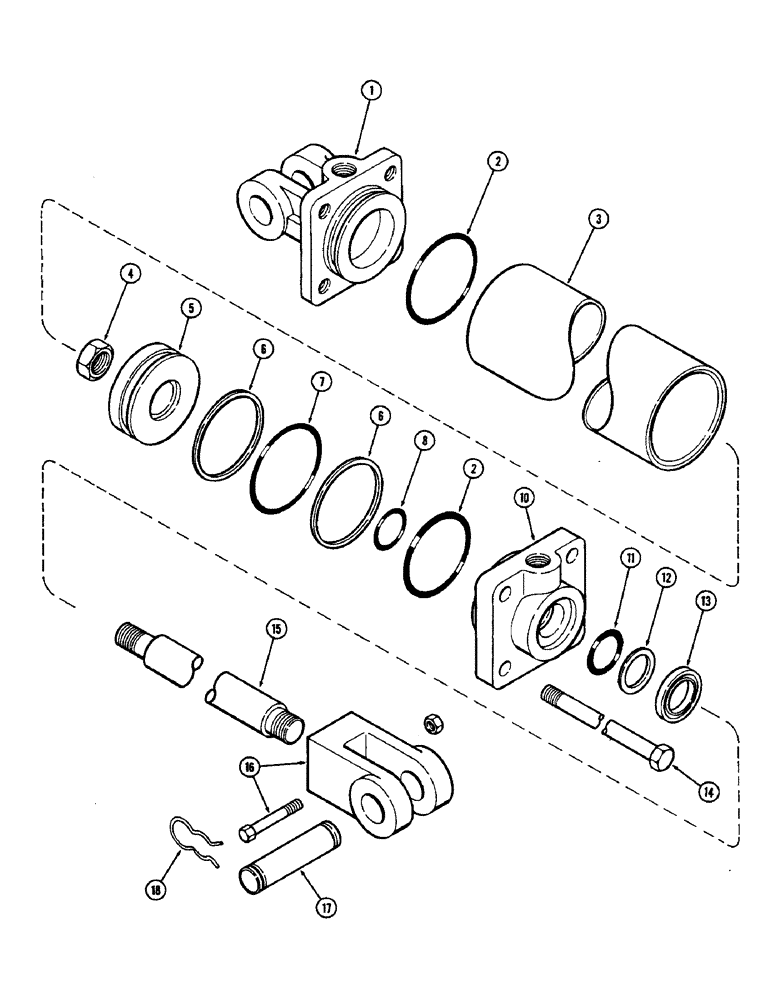

Запчасти Case IH 1300W (48) - CYLINDER 3 X 24 INCH (76.2 X 609.6 MM)

NSS

NOT SOLD SEPARAT

CYLINDER - hydraulic complete, Order T90083 machinery item

2шт.

1

T53046

CAP

CLEVIS - butt

1шт.

2

T53051

O-RING

2шт.

Part of Seal Kit, P/N T63126

1шт.

3

T53061

TUBE - cylinder

1шт.

4

131-1151

NUT - lock 3/4" NF

1шт.

5

T53048

PISTON

1шт.

6

H754614

WASHER

- backup

2шт.

Part of Seal Kit, P/N T63126

1шт.

7

D38755

O-RING,0.21" Thk x 2.6" ID, -334, Cl 5, 75 Duro

- 3 x 2-5/8 x 3/16", 76.2 x 66.7 x 4.8 MM

1шт.

Part of Seal Kit, P/N T63126

1шт.

8

D32114

O-RING,0.75" ID x 0.875" OD

- 7/8 x 3/4 x 1/16", 22.2 x 19.1 x 1.6 MM

1шт.

Part of Seal Kit, P/N T63126

1шт.

10

T53047

END

GLAND

1шт.

11

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- 1-3/8 x 1-1/8 x 1/8, 34.9 x 28.6 x 3.2 MM

1шт.

Part of Seal Kit, P/N T63126

1шт.

12

A23553

RING

WASHER - backup

1шт.

Part of Seal Kit, P/N T63126

1шт.

13

T53057

WIPER SEAL

WIPER

1шт.

Part of Seal Kit, P/N T63126

1шт.

14

T53062

ROD - tie

4шт.

15

T53060

ROD

- piston

1шт.

16

T53290

CLEVIS

ASSEMBLY

1шт.

17

T53058

PIN

- clevis

2шт.

18

T52926

CLIP

4шт.

T63126

SEAL KIT

- seal, Includes: ref. nos. 2, 6, 7, 8, 11, 12, 13

1шт.
