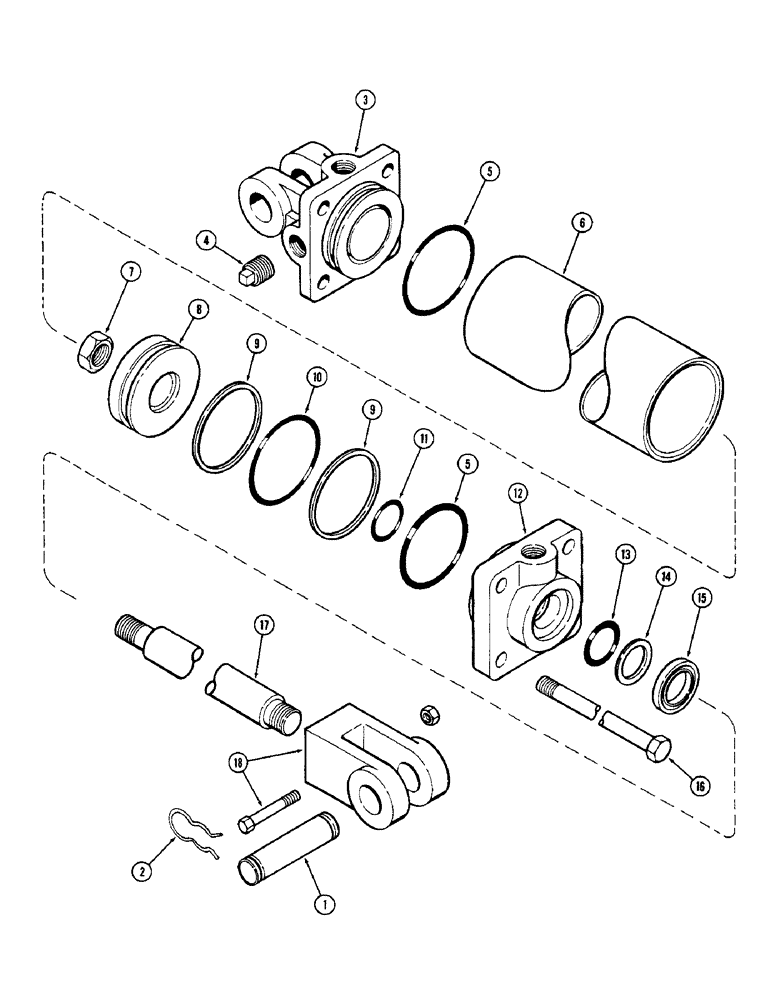

Запчасти Case IH 1300W (50) - CYLINDER 3-1/2 X 24 INCH (88.9 X 609.6 MM)

T55586

CYLINDER - hydraulic complete

2шт.

1

T53058

PIN

- clevis

2шт.

2

T52926

CLIP

4шт.

3

T55580

CLEVIS - butt

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

- pipe 1/2"

1шт.

5

55583

O-RING

2шт.

Part of Seal Kit, P/N T63240

1шт.

6

T55579

TUBE - cylinder

1шт.

7

131-1151

NUT - lock 3/4" NF

1шт.

8

T55581

PISTON

1шт.

8

T55585

WASHER

- backup (Order H752030)

2шт.

Part of Seal Kit, P/N T63240

1шт.

10

T55584

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

- (Order T32305) 3-1/2 x 3-1/8 x 3/16" (88.9 x 79.4 x 4.8 MM)

1шт.

Part of Seal Kit, P/N T63240

1шт.

11

D32114

O-RING,0.75" ID x 0.875" OD

- 7/8 x 3/4 x 1/16" (22.2 x 19.1 x 1.6 MM)

1шт.

Part of Seal Kit, P/N T63240

1шт.

12

T56985

GLAND

1шт.

13

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- 1-5/8 x 1-3/8 x 1/8" (41.3 x 34.9 x 3.2 MM)

1шт.

Part of Seal Kit, P/N T63240

1шт.

14

L32992

RING

WASHER - backup

1шт.

Part of Seal Kit, P/N T63240

1шт.

15

T53294

WIPER SEAL

WIPER

1шт.

Part of Seal Kit, P/N T63240

1шт.

16

T55582

ROD - tie

4шт.

17

T55577

ROD

- piston

1шт.

18

T53290

CLEVIS

ASSEMBLY

1шт.

T63240

KIT - seal, Includes: ref. nos. 5, 8, 10, 11, 13, 14, 15

1шт.
