(9-16) - ALL PURPOSE SWEEPS, FOR SLOTTED SHANK

Запчасти Case IH 144T (9-16) - ALL PURPOSE SWEEPS, FOR SLOTTED SHANK

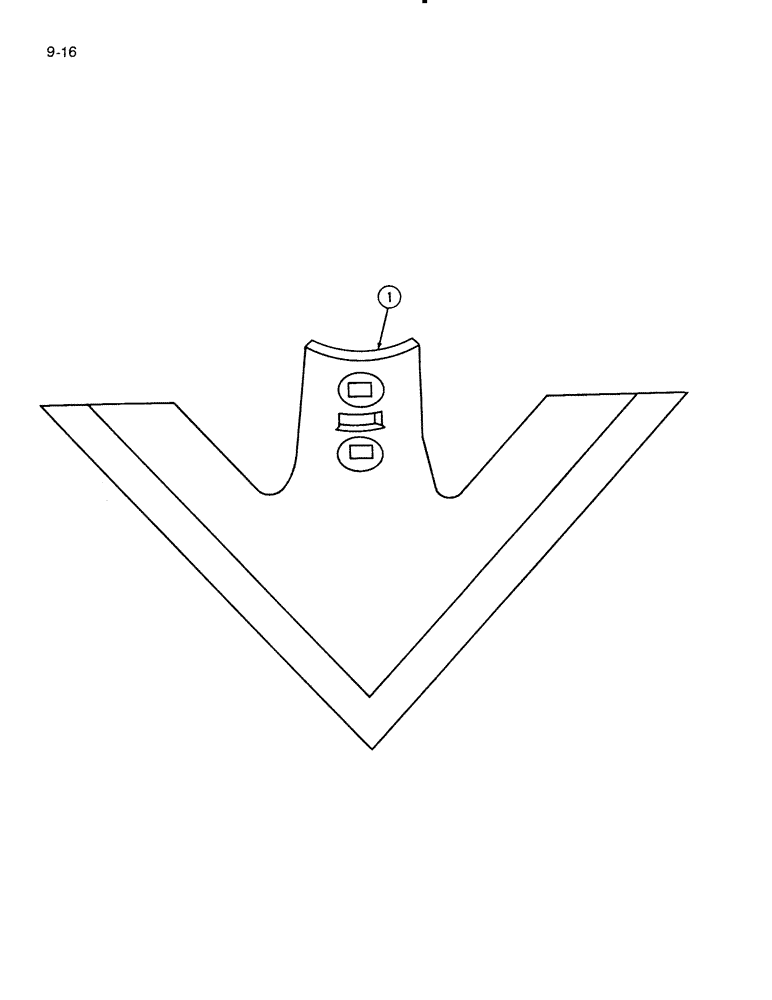

Схема запчастей Case IH 144T - (9-16) - ALL PURPOSE SWEEPS, FOR SLOTTED SHANK
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

479005R2

SWEEP

- full, 6 x 3/16 inch thick

1шт.

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT - special, shovel and sweep

2шт.

490648R1

CLIP

- sweep bolt

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

1

479006R2

SWEEP

- full, 8 x 3/16 inch thick

1шт.

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT - special, shovel and sweep

2шт.

490648R1

CLIP

- sweep bolt

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

1

479007R2

SWEEP

- full, 10 x 3/16 inch thick

1шт.

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT - special, shovel and sweep

2шт.

490648R1

CLIP

- sweep bolt

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

1

479011R2

SWEEP

- half, left, 10 x 3/16 inch thick

1шт.

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT - special, shovel and sweep

2шт.

490648R1

CLIP

- sweep bolt

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.

1

479012R2

SWEEP

- half, right, 10 x 3/16 inch thick

1шт.

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT - special, shovel and sweep

2шт.

490648R1

CLIP

- sweep bolt

1шт.

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

2шт.
