(9-20) - DOWN PRESSURE SPRING ATTACHMENT, ROCKSHAFT SUPPORT, 274

Запчасти Case IH 144T (9-20) - DOWN PRESSURE SPRING ATTACHMENT, ROCKSHAFT SUPPORT, 274

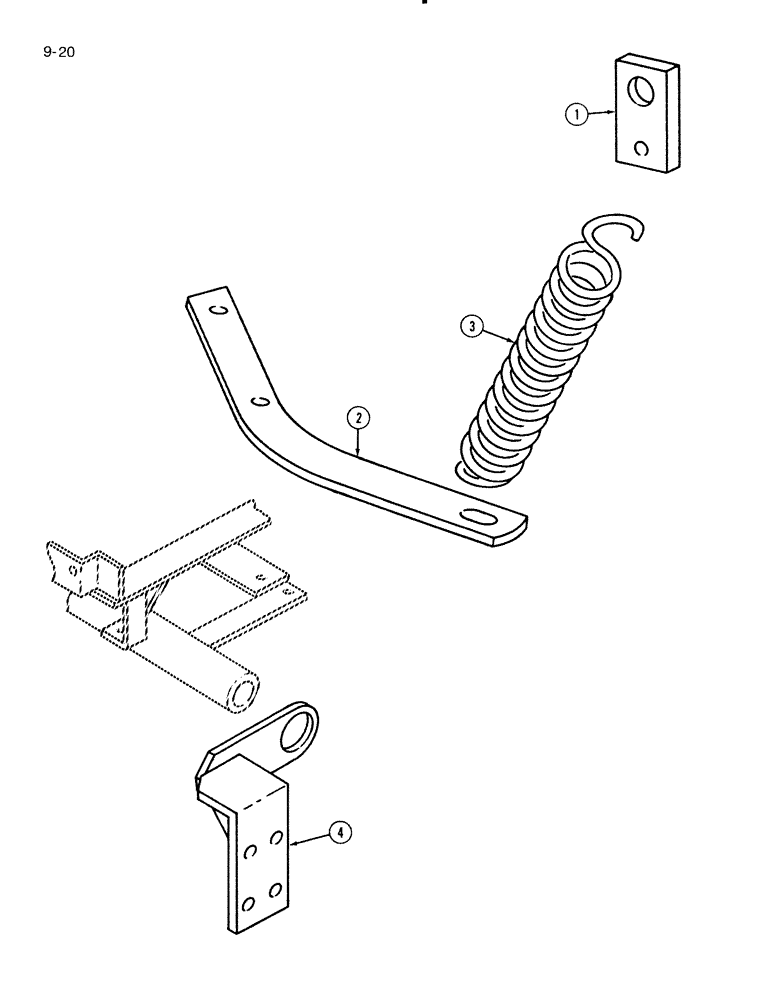

Схема запчастей Case IH 144T - (9-20) - DOWN PRESSURE SPRING ATTACHMENT, ROCKSHAFT SUPPORT, 274
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1254420C1

BAR

- tension spring support, strap

1шт.

2

1281320C1

BAR

- tension spring support

1шт.

615-14045

BOLT,Hex, M14 x 2 x 45mm, Cl 8.8, Full Thd

2шт.

3

1254385C1

SPRING

- pressure

1шт.

4

1281072C1

SUPPORT

- rockshaft bracket, 274 tractors

1шт.

614-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 8.8, Full Thd

- hex, 14 x 35 mm, Class 8.8, rockshaft support 274 tractors

4шт.
