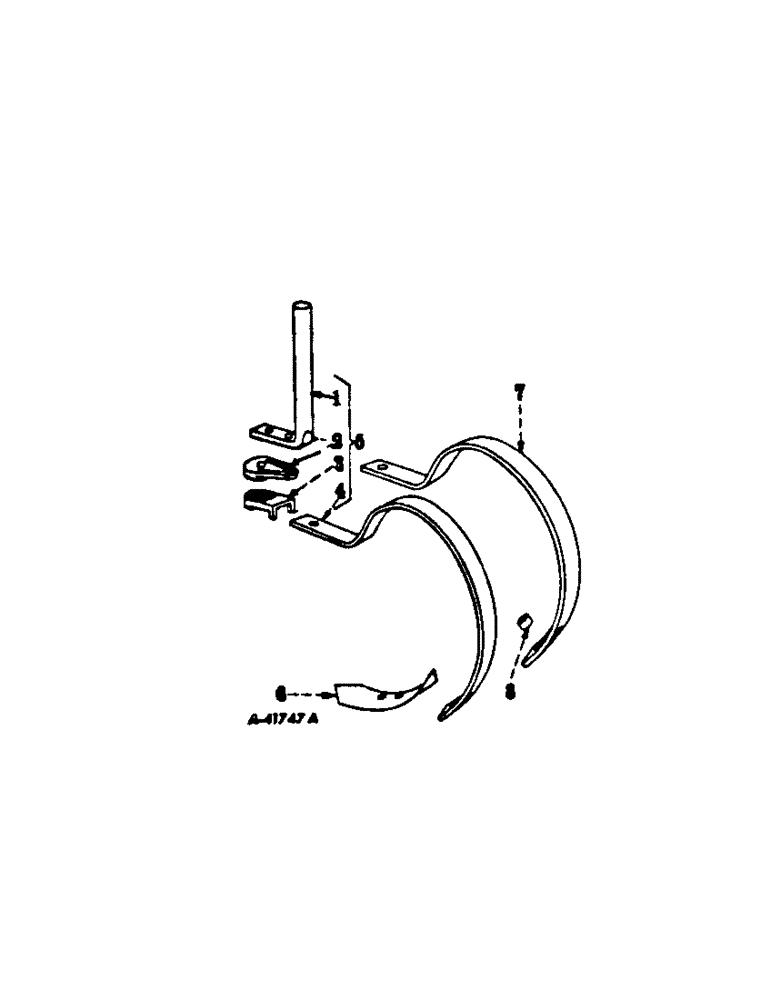

Запчасти Case IH 153 (AP-28) - SPRING TEETH, FOR UNITS A THRU E, H, J, P, Q AND U, BUILT FROM 1970 TO 1972

1

547754R1

SUPPORT ASSY.

STANDARD, 1-1/4 dia. x 10 in. long

1шт.

1

57576R1

STANDARD, 1-1/4 dia. x 7 in. long

1шт.

1

547756R1

STANDARD, 1-1/4 dia. x 11.5 in. long

1шт.

2

547759R1

STRAP

spring tooth

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap, double spring tooth

2шт.

180183

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap, single spring tooth

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

SA2344

SPACER,3/8" Pipe x 7/16"

outer spring tooth

1шт.

4

547757R1

SPRING

TOOTH, spring, single

1шт.

5

547751R91

DOUBLE SPRING TOOTH W/1-1/4 X 10 STANDARD ASSY, units A, E, E, H, X, Y and Z

1шт.

5

547753R91

DOUBLE SPRING TOOTH W/1-1/4 X 11.5 STANDARD ASSY, units D, H, X and Z

1шт.

5

57572C91

DOUBLE SPRING TOOTH W/1-1/4 X 7 STANDARD ASSY, units A, D, E, H, X, Y and Z

1шт.

5

57573C91

SINGLE SPRING TOOTH W/1-1/4 X 7 STANDARD ASSY, unit H

1шт.

5

57574C91

TOOTH

SINGLE SPRING TOOTH W/1-1/4 X 10 STANDARD ASSY, units H and W

1шт.

5

57575C91

SINGLE SPRING TOOTH W/1-1/4 X 11.5 STANDARD ASSY, unit H

1шт.

6

25702BA

SHOVEL

double point, not part of assy

1шт.

25548BBX

BOLT,7/16" - 14 x 1 1/2"

ASSY, special sweep and shovel

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

271501

SOCKET

NUT, 7/16-14 znd hex.

2шт.

25596BBX

BOLT

ASSY, special sweep and shovel

1шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

2шт.

7

547758R1

TOOTH

outer spring

1шт.
