(09-004) - HITCH PARTS - RIGID FRAME, 6 ROW WIDE AND 8 ROW NARROW

Запчасти Case IH 1830 (09-004) - HITCH PARTS - RIGID FRAME, 6 ROW WIDE AND 8 ROW NARROW No Description

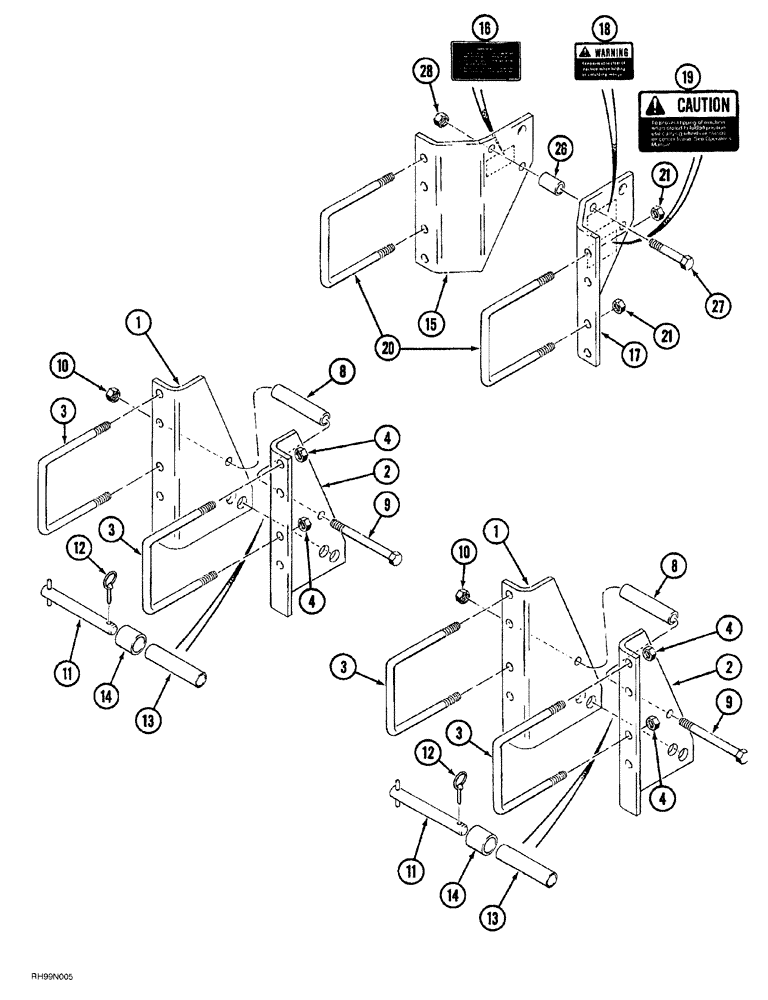

Схема запчастей Case IH 1830 - (09-004) - HITCH PARTS - RIGID FRAME, 6 ROW WIDE AND 8 ROW NARROW No Description
10
9
27
4
3
4
4
14
26
8
18
14
12
8
1
3
20
12
9
2
2
4
17
1
21
13
3
19
16
11
21
3
13
15
28
11
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

149488C1

SUPPORT

lower hitch, left-hand

2шт.

2

149487C1

SUPPORT

lower hitch, right-hand

2шт.

3

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

BOLT "U" 3/4" NC, for 6 row wide and 8 row narrow with 5" x 7" frame

4шт.

4

425-1012

NUT,3/4"-10, G5

8шт.

8

147350C1

SPACER

lower bracket

2шт.

9

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

hex, 3/4" NC x 7-1/2"

2шт.

10

231-42112

NUT,3/4"-10, GB

hex, self-locking, 3/4" NC

2шт.

11

1279504C1

PIN,28.57mm OD x 226mm L

Assy, mounting

2шт.

12

372907R91

LINCH PIN

self-locking

2шт.

13

147340C1

SPACER

hitch, Category III

2шт.

14

147341C1

SPACER

hitch

2шт.

15

1547049C1

MAST ASSEMBLY

PLATE hitch, upper left-hand, Includes: Ref. 16

1шт.

16

1250723C1

DECAL

important, cab clearance

1шт.

17

1547074C1

PLATE

hitch, upper right-hand, Includes: Ref. 18 and 19

1шт.

18

59051C2

PRODUCT GRAPHIC

warning, keep everyone clear of machine when folding or unfolding wings

1шт.

19

1250839C1

DECAL

caution, to prevent tipping

1шт.

20

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

BOLT "U" 3/4" NC, for 6 row wide and 8 row narrow with 5" x 7" frame

2шт.

21

425-1012

NUT,3/4"-10, G5

4шт.

26

462425R2

SPACER

mast

1шт.

27

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

hex, 3/4" NC x 4"

1шт.

28

231-42112

NUT,3/4"-10, GB

hex, self-locking, 3/4" NC

1шт.
