(09-002) - HITCH PARTS - RIGID FRAME, THREE POINT HITCH - CATAGORY II, 4 ROW WIDE AND 6 ROW NARROW

Запчасти Case IH 1830 (09-002) - HITCH PARTS - RIGID FRAME, THREE POINT HITCH - CATAGORY II, 4 ROW WIDE AND 6 ROW NARROW No Description

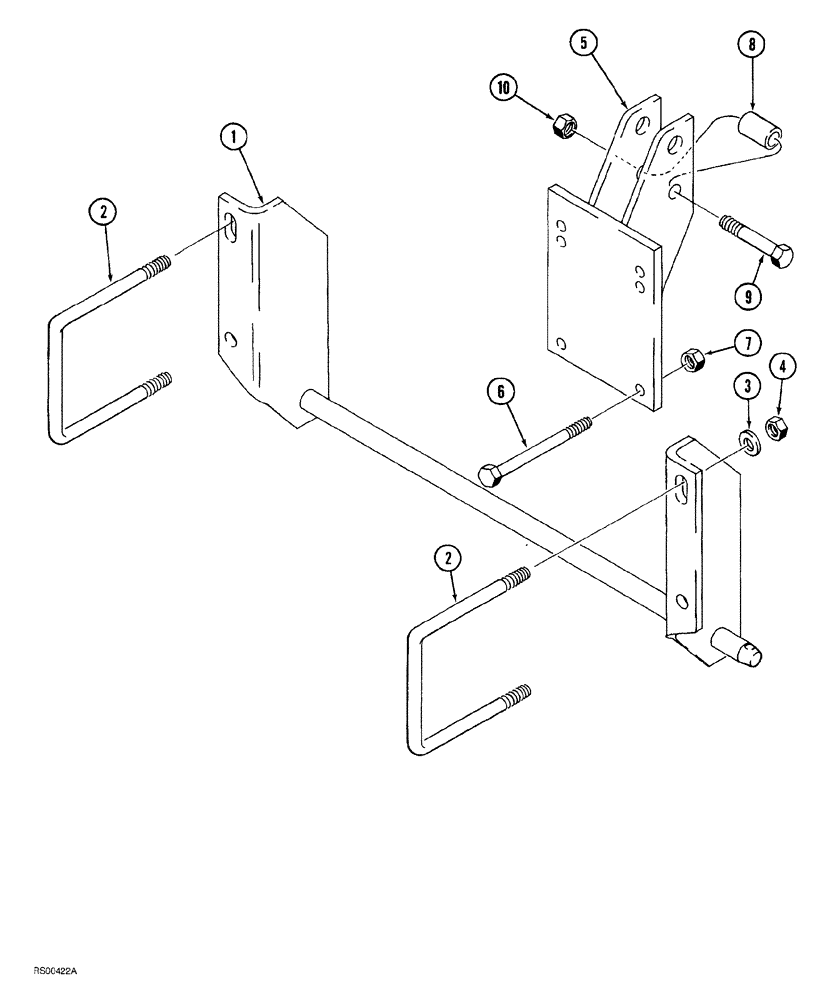

Схема запчастей Case IH 1830 - (09-002) - HITCH PARTS - RIGID FRAME, THREE POINT HITCH - CATAGORY II, 4 ROW WIDE AND 6 ROW NARROW No Description
2
9
5
7
3
6
8
1
2
10
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

149499C2

BRACKET

lower hitch

1шт.

2

493975R3

U-BOLT,3/4" - 10 x 6 1/2", Steel

BOLT "U" 3/4" NC

2шт.

3

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

flat, 25/32" x 1-1/2" x 11/64"

4шт.

4

425-1012

NUT,3/4"-10, G5

4шт.

5

1547045C1

PLATE

BRACKET upper hitch

1шт.

6

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

hex, 5/8" NC x 7"

4шт.

7

231-42110

LOCK NUT,Hex, 5/8"-11, GB

4шт.

8

462425R2

SPACER

mast

1шт.

9

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

hex, 3/4" NC x 4"

1шт.

10

231-42112

NUT,3/4"-10, GB

hex, self-locking, 3/4" NC

1шт.
