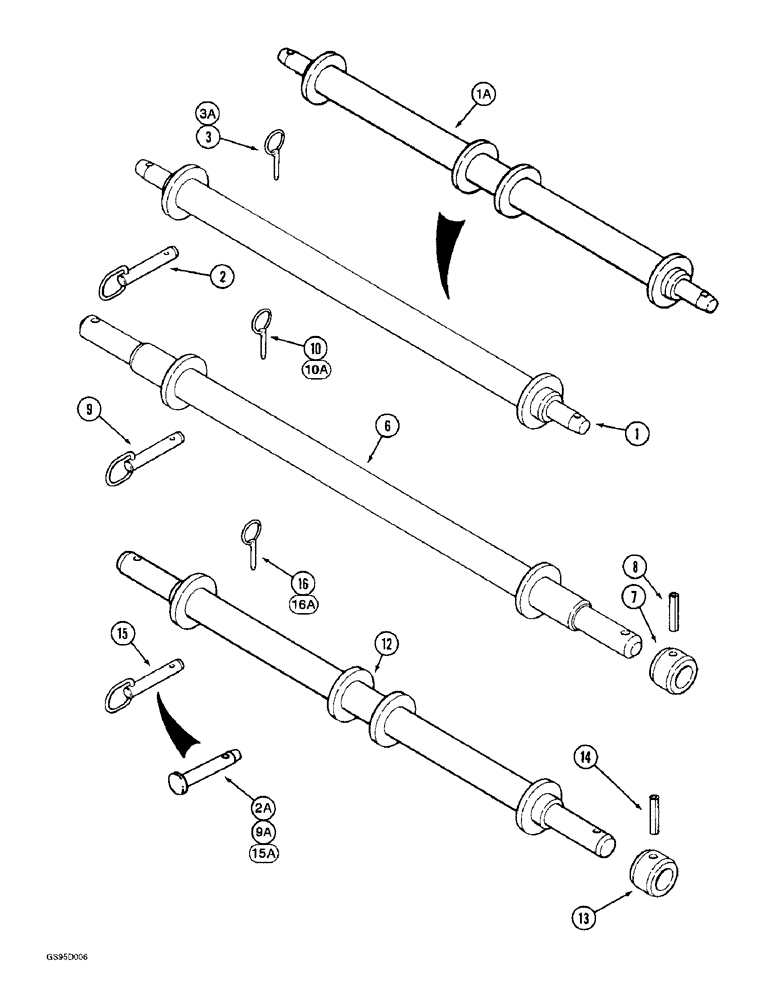

Запчасти Case IH 184 (9-08) - HITCH SPINDLES

1

137084C1

SPINDLE

- hitch, if used , CATEGORY II

1шт.

1a

483572R92

SPINDLE

- hitch, if used , CATEGORY II

1шт.

2

113225C1

PIN

- ring head , CATEGORY II

2шт.

2a

141292C1

PIN

- clevis , CATEGORY II

2шт.

3

A30338

PIN

- self-locking, special, 1/4 inch diameter, used with 113225C1 ring head pin, item 2 , CATEGORY II

2шт.

3a

A33497

LINCH PIN,4.76mm OD Pin

PIN - snap lock, 3/16 inch diameter, used with 141292C1 clevis pin, item 2A , CATEGORY II

2шт.

6

137083C1

SPINDLE

- hitch , CATEGORY III

1шт.

7

401233R1

COLLAR

- thrust , CATEGORY III

2шт.

8

38-33240

PIN,1/2" x 2 1/2", Coiled

Category III 1/2" x 2 1/2", Coiled

2шт.

9

113225C1

PIN

- ring head , CATEGORY III

2шт.

9a

141292C1

PIN

- clevis , CATEGORY III

2шт.

10

A30338

PIN

- self-locking, special, 1/4 inch diameter, used with 113225C1 ring head pin, item 9 , CATEGORY III

2шт.

10a

A33497

LINCH PIN,4.76mm OD Pin

PIN - snap lock, 3/16 inch diameter, used with 14292C1 clevis pin, item 9A , CATEGORY III

2шт.

12

490156R1

SPINDLE

- hitch , CATEGORY III WITH CATEGORY II SPREAD

1шт.

13

401233R1

COLLAR

- thrust , CATEGORY III WITH CATEGORY II SPREAD

2шт.

14

38-33240

PIN,1/2" x 2 1/2", Coiled

Category III with Category II spread 1/2" x 2 1/2", Coiled

2шт.

15

113225C1

PIN

- ring head , CATEGORY III WITH CATEGORY II SPREAD

2шт.

15a

141292C1

PIN

- clevis , CATEGORY III WITH CATEGORY II SPREAD

2шт.

16

A30338

PIN

- self-locking, special, 1/4 inch diameter, used with 113225C1 ring head pin, item 15 , CATEGORY III WITH CATEGORY II SPREAD

2шт.

16a

A33497

LINCH PIN,4.76mm OD Pin

PIN - snap lock, 3/16 inch diameter, used with 141292C1 clevis pin, item 15A , CATEGORY III WITH CATEGORY II SPREAD

2шт.
