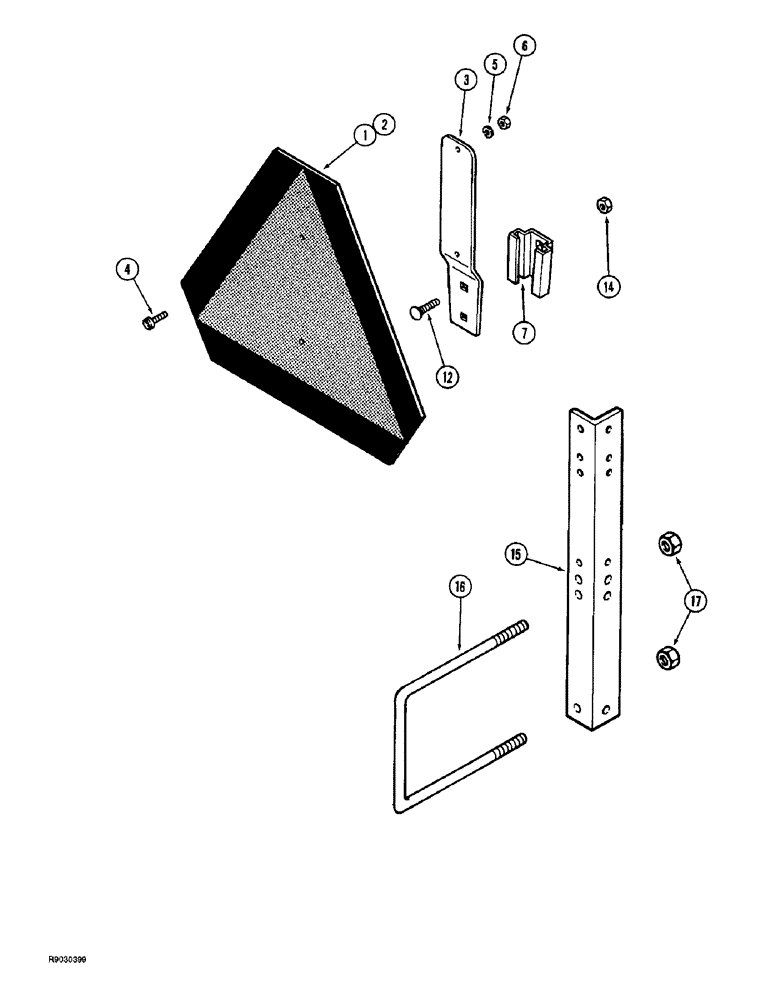

Запчасти Case IH 184 (9-36) - SMV EMBLEM

A59450

WARNING SIGN

EMBLEM ASSEMBLY - slow moving vehicle

1шт.

1

NSS

NOT SOLD SEPARAT

EMBLEM - slow moving vehicle

1шт.

2

321-4311

DECAL

- SMV emblem

1шт.

3

NSS

NOT SOLD SEPARAT

BRACKET - emblem support

1шт.

4

159927

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

2шт.

5

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

6

225-14110

NUT,#10-24

2шт.

7

A59457

BRACKET

- mounting

1шт.

12

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

15

58316C2

SUPPORT

- mounting

1шт.

16

1250813C1

U-BOLT

- 5/8 inch

1шт.

17

425-1010

NUT,5/8"-11, G5

2шт.
