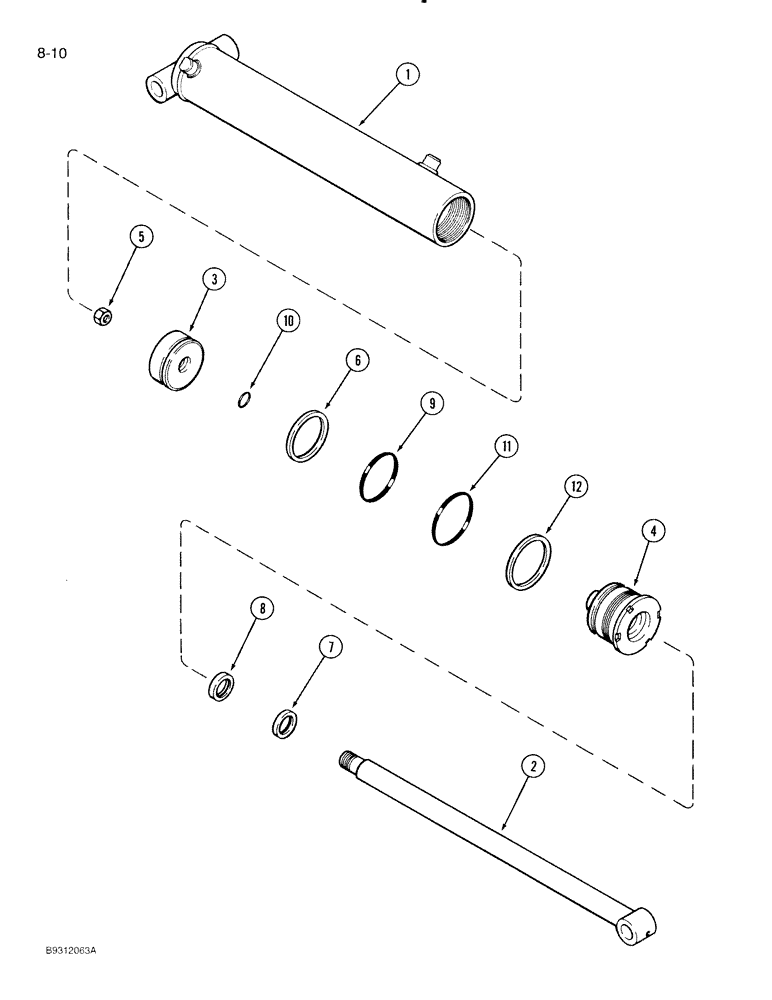

Запчасти Case IH 1840 (8-10) - LIFT CYLINDER ASSEMBLY, FOLDING FRAME, 12 ROW NARROW

1986595C1

CYLINDER,Double Acting, 38.1mm Rod, 381mm Stroke

ASSEMBLY - lift, 4 inch bore x 16 inch stroke

1шт.

1

1986657C1

TUBE ASSY.

BODY - cylinder

1шт.

2

1986658C1

ROD ASSY.

ROD - piston

1шт.

3

1986659C1

PISTON

- cylinder

1шт.

4

1986660C1

HEAD

GLAND - cylinder, rod end

1шт.

5

25126R1

LOCK NUT,1 1/8"-12, GC

NUT - hex, 1-1/8 inch NF

1шт.

1986665C1

SEAL KIT

- seal

1шт.

6

381110R1

RING

- piston seal

1шт.

7

403460R1

WIPER SEAL,38mm ID x 50.9mm OD x 7.94mm Thk

SEAL - piston rod wiper

1шт.

8

119203C1

SEAL

SEAL - piston rod

1шт.

9

238-5153

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

1шт.

10

238-6216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 6, 90 Duro

1шт.

11

238-6240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup

1шт.
