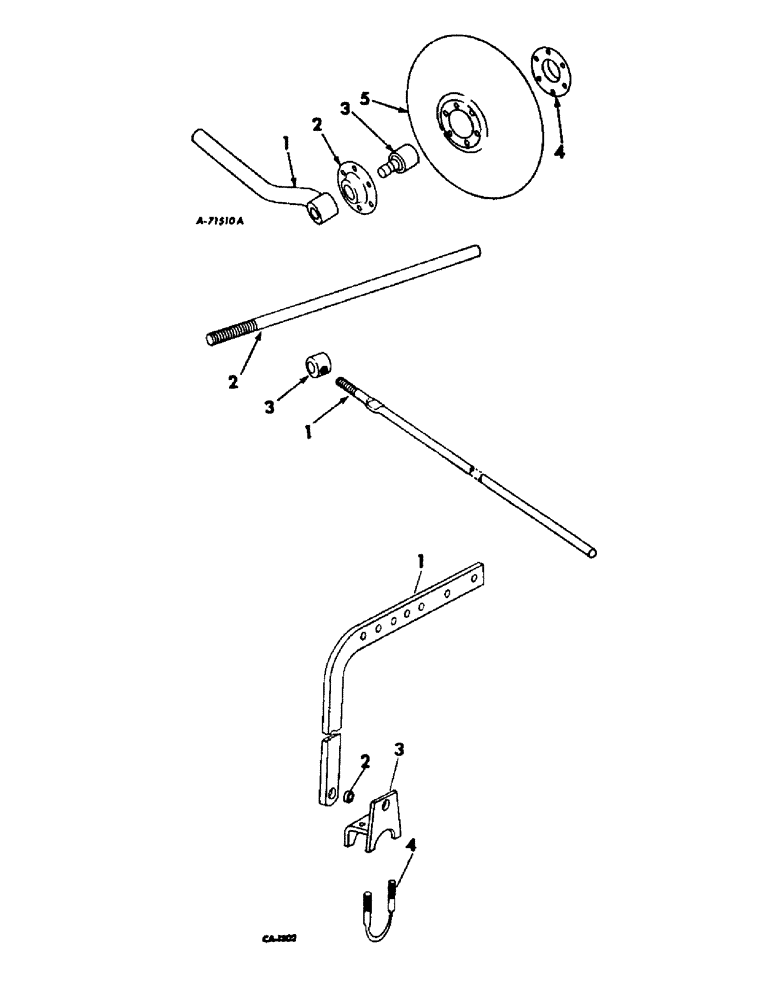

Запчасти Case IH 353 (AT-22[B]) - JOCKEY ARCH, FOR ROUND TOOL BARS

1

542987R1

ARM

jockey bar, wide, 8 used for unit A, 12 used for unit B

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 znd hex-hd mach, 8 used for unit A, 12 used for unit B

1шт.

120384

WASHER,1/2"

LOCK, , 8 used for unit A, 12 used for unit B 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 8 used for unit A, 12 used for unit B 1/2"-13, G5

1шт.

2

455410R1

SPACER

8 used for unit A, 12 used for unit B

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap, 3 used for unit A, 5 used for unit B

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap, 2 used for units A and B

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z, 8 used for unit A, 12 used for unit B

1шт.

120384

WASHER,1/2"

LOCK, , 5 used for unit A, 7 used for unit B 1/2"

1шт.

3

542973R1

CLAMP ASSY, 5 used for unit A, 7 used for unit B

1шт.

4

542976R1

U-BOLT, 5 used for unit A, 7 used for unit B

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 15 used for unit A, 21 used for unit B 1/2"-13, G5

1шт.
