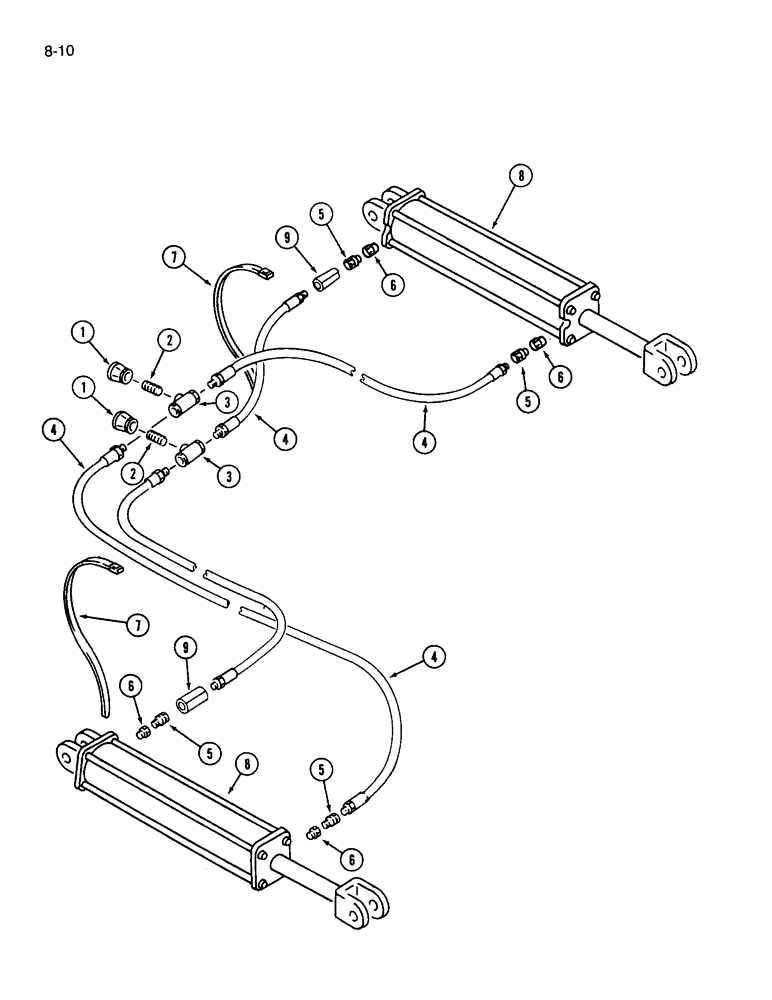

Запчасти Case IH 365 (8-10) - HYDRAULIC CIRCUIT, WING FOLDING, MACHINES BUILT PRIOR TO P.I.N. 10371 (08) - HYDRAULICS

1

444114

COUPLING,1/2"-14 NPTF x 3/8"-18 NPTF

- plain auto pipe, 1/2 to 3/8 inch

2шт.

2

221-161

PIPE,Nipple, 3/8" NPT x 1 1/2"

FITTING - plain long pipe, 3/8 x 1-1/2 inch

2шт.

3

444122

TEE,3/8"-18 NPTF Fem

- plain auto pipe, 3/8 inch

2шт.

4

1256447C1

HYDRAULIC HOSE

HOSE - hydraulic, 72 inch

4шт.

5

1256448C1

ADAPTER

RESTRICTOR - two way swivel

4шт.

6

444016

REDUCER

ADAPTER - plain auto pipe, 1/2 to 3/8 inch

4шт.

7

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - hose tie

2шт.

8

60739C91

CYLINDER

ASSEMBLY - hydraulic, 3-1/2 x 8 inch (See Page 8-27)

2шт.

8

140683C94

HYDRAULIC CYLINDER

CYLINDER ASSEMBLY - hydraulic, 3-1/2 x 8 inch (See Page 8-29)

2шт.

8

1272147C91

CYLINDER

ASSEMBLY - hydraulic, 3-1/2 x 8 inch (See Page 8-33)

2шт.

28543R1

CLEVIS PIN,1" x 3 1/4"

PIN - clevis, 1 x 3-1/4 inch

2шт.

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

2шт.

1260900C1

HYD CONNECTOR,1/2" - 14 x 3/4" - 16 NPT

ADAPTER - 1/2 inch female x 3/4 inch male

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

9

62517C1

VALVE

RESTRICTOR - hydraulic cylinder inlet hose

2шт.
