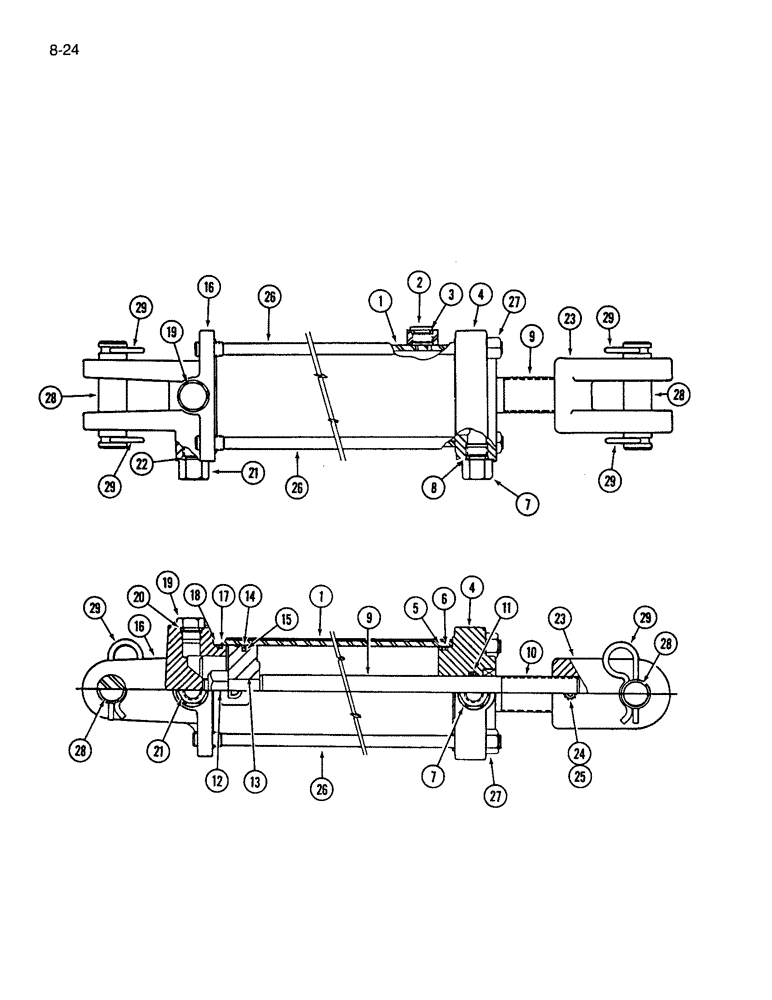

Запчасти Case IH 365 (8-24) - HYDRAULIC CYLINDER, 3-1/2 ID X 8 INCH STROKE (08) - HYDRAULICS

85029C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 3-1/2 x 8 inch (No longer available, order 85029C92 cylinder assembly)

1шт.

85029C92

CYLINDER

ASSEMBLY - hydraulic, 3-1/2 x 8 inch

1шт.

1

145424C2

HYD TUBE,3.5" ID, 10.167" Length

TUBE - cylinder

1шт.

2

224582C1

PLUG

- hex socket, 3/4-16 inch, O-ring boss

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

4

1272826C1

HEAD

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - gland, 3-1/4 ID x 3-1/2 inch OD

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

RING - backup, gland O-ring

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

7

1272523C1

HYD CONNECTOR,3/4"-16 Male ORB x 3/8"-18 NPT Fem

ADAPTER - gland

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

145231C1

PISTON ROD

ROD - piston

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

12

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

13

145422C2

PISTON

- cylinder (Used with 85029C91 cylinder assembly)

1шт.

13

85179C1

PISTON

- cylinder (Used with 85029C92 cylinder assembly)

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - backup, piston seal, 3 ID x 3-3/16 inch OD

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

16

1272825C1

HEAD

- cylinder, closed end

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - cylinder head, 3-1/4 ID x 3-1/2 inch OD

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

18

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

19

9410359

PLUG

- hex, cylinder head, 3/4-16 inch O-ring boss

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Plug

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

21

1272523C1

HYD CONNECTOR,3/4"-16 Male ORB x 3/8"-18 NPT Fem

ADAPTER - cylinder head

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

23

145233C1

CLEVIS,1/4" - 12

- piston rod

1шт.

24

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

25

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

26

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT - tie, cylinder

4шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

28

1923593C1

PIN

- clevis and cylinder head

2шт.

29

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

4шт.

84919C2

GASKET KIT

KIT - seal and O-ring, Includes Refs. 3, 5, 6, 8, 10, 11, 14, 15, 17, 18, 20 and 22 and (2) wear rings not used on this cylinder

1шт.
