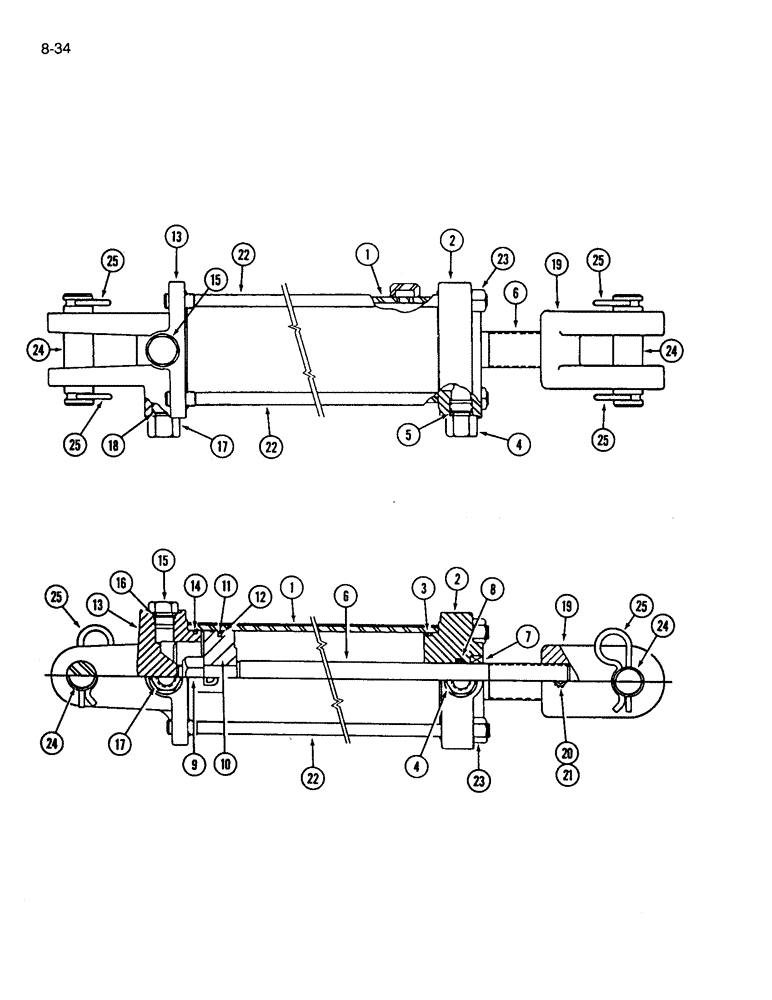

Запчасти Case IH 365 (8-34) - HYDRAULIC CYLINDER, 3-3/4 ID X 8 INCH STROKE (08) - HYDRAULICS

1923518C91

CYLINDER

ASSEMBLY - hydraulic, 3-3/4 x 8 inch (No longer available, order 85030C92 cylinder assembly, See Page 8-37)

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

2

1260882C1

HEAD

GLAND - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - gland, 3-1/2 ID x 3-3/4 inch OD

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

4

1272523C1

HYD CONNECTOR,3/4"-16 Male ORB x 3/8"-18 NPT Fem

ADAPTER - gland

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch OD

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

6

1267056C1

ROD

- piston

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

9

20268R1

LOCK NUT,7/8"-14, GC

NUT - hex lock, 7/8 inch NF, Grade 8

1шт.

10

149973C1

PISTON

- cylinder

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - backup, piston seal, 3-1/4 ID x 3-7/16 inch OD

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

13

1285799C1

HEAD

- cylinder, closed end (Replaces 149970C1)

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - cylinder head, 3-1/2 ID x 3-3/4 inch OD

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

15

9410359

PLUG

- hex, cylinder head, 3/4-16 inch O-ring boss

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - 1/2 inch tube OD, plug

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

17

1272523C1

HYD CONNECTOR,3/4"-16 Male ORB x 3/8"-18 NPT Fem

ADAPTER - cylinder head

1шт.

18

NSS

NOT SOLD SEPARAT

O-RING - adapter, 1/2 inch tube OD

1шт.

Part of seal and O-ring kit P/N 80116C2 and (2) wear rings not used on this cylinder

1шт.

19

1267057C1

CLEVIS,3/8" - 16

- rod end

1шт.

20

483-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

21

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD - insert

1шт.

22

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT - tie, cylinder

4шт.

23

425-1010

NUT,5/8"-11, G5

4шт.

24

1923593C1

PIN

- clevis and cylinder head

2шт.

25

520175R1

CLIP

PIN - cotter, hair, 3/16 inch diameter

4шт.

80115C2

SEAL KIT

KIT - seal and O-ring, Includes Refs. 3, 5, 7, 8, 11, 12, 14, 16 and 18 and (2) wear rings and (2) backup rings not used on this cylinder

1шт.
