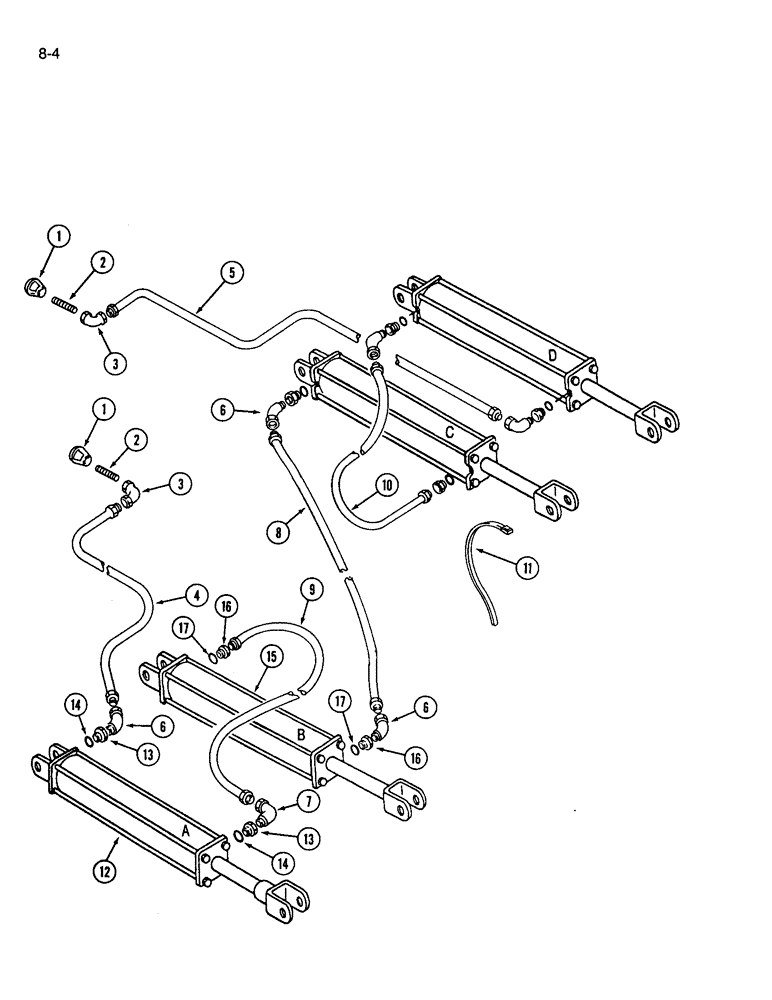

Запчасти Case IH 365 (8-04) - HYDRAULIC CIRCUIT, DEPTH CONTROL, FOLDING FRAME, MACHINES BUILT P.I.N. 10371 AND AFTER (08) - HYDRAULICS

1

444114

COUPLING,1/2"-14 NPTF x 3/8"-18 NPTF

- plain auto pipe, 1/2 to 3/8 inch

2шт.

2

27937R1

PIPE,Nipple, 3/8" NPT x 4"

FITTING - plain long pipe, 3/8 x 4 inch

2шт.

3

444070

ELBOW,90 Degree, 3/8"-18 NPTF, Fem, Brass

- plain auto, 90 degree, pipe, 3/8 inch

2шт.

4

1265755C1

HOSE

- hydraulic, 114 inch (Cultivators coded D and E)

1шт.

4

1265751C1

HOSE

- hydraulic, 132 inch (Cultivators coded F and G)

1шт.

4

1265761C1

HYDRAULIC HOSE,0.38" ID x 150.00", SAE 100R7

(Cultivators Coded H) 0.38" ID x 150.00", SAE 100R7

1шт.

5

1265756C1

HOSE

- hydraulic, 120 inch (Cultivators coded D and E)

1шт.

5

1265759C1

HOSE

- hydraulic, 138 inch (Cultivators coded F and G)

1шт.

5

1265762C1

HOSE

- hydraulic, 156 inch (Cultivators coded H)

1шт.

6

444056

ELBOW

- plain auto, 45 degree, pipe street, 3/8 inch

4шт.

7

444042

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- plain auto, 90 degree, pipe street, 3/8 inch

2шт.

8

1265751C1

HOSE

- hydraulic, 132 inch (Cultivators coded D through I)

1шт.

9

1256447C1

HYDRAULIC HOSE

HOSE - hydraulic, 72 inch (Cultivators coded D and E)

1шт.

9

1265750C1

HYDRAULIC HOSE,0.38" ID x 84.00", SAE 100R7

(Cultivators coded F and G)

1шт.

9

1265763C1

HOSE

- hydraulic, 102 inch (Cultivators coded H)

1шт.

10

1265757C1

HOSE

- hydraulic, 66 inch (Cultivators coded D and E)

1шт.

10

1265760C1

HOSE

- hydraulic, 78 inch (Cultivators coded F and G)

1шт.

10

1265764C1

HOSE

- hydraulic, 96 inch (Cultivators coded H)

1шт.

1265752C1

GUIDE

- hose

2шт.

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch (Cultivators coded D and E)

6шт.

11

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch (Cultivators coded F, G, H and I)

8шт.

12

1923519C91

CYLINDER

ASSEMBLY - hydraulic, 4 x 8 inch (See Page 8-39)

1шт.

12

85031C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 4 x 8 inch (See Page 8-41) (Labled A for trailing machines)

1шт.

85030C91C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

13

1272523C1

HYD CONNECTOR,3/4"-16 Male ORB x 3/8"-18 NPT Fem

ADAPTER - 3/4 inch male x 3/8 inch female

2шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

15

1923518C91

CYLINDER

ASSEMBLY - hydraulic, 3-3/4 x 8 inch (See Page 8-35)

1шт.

15

85030C91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hydraulic, 3-3/4 x 8 inch (See Page 8-37) (Labled B for trailing machines)

1шт.

16

1272523C1

HYD CONNECTOR,3/4"-16 Male ORB x 3/8"-18 NPT Fem

ADAPTER - 3/4 inch male x 3/8 inch female

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.
