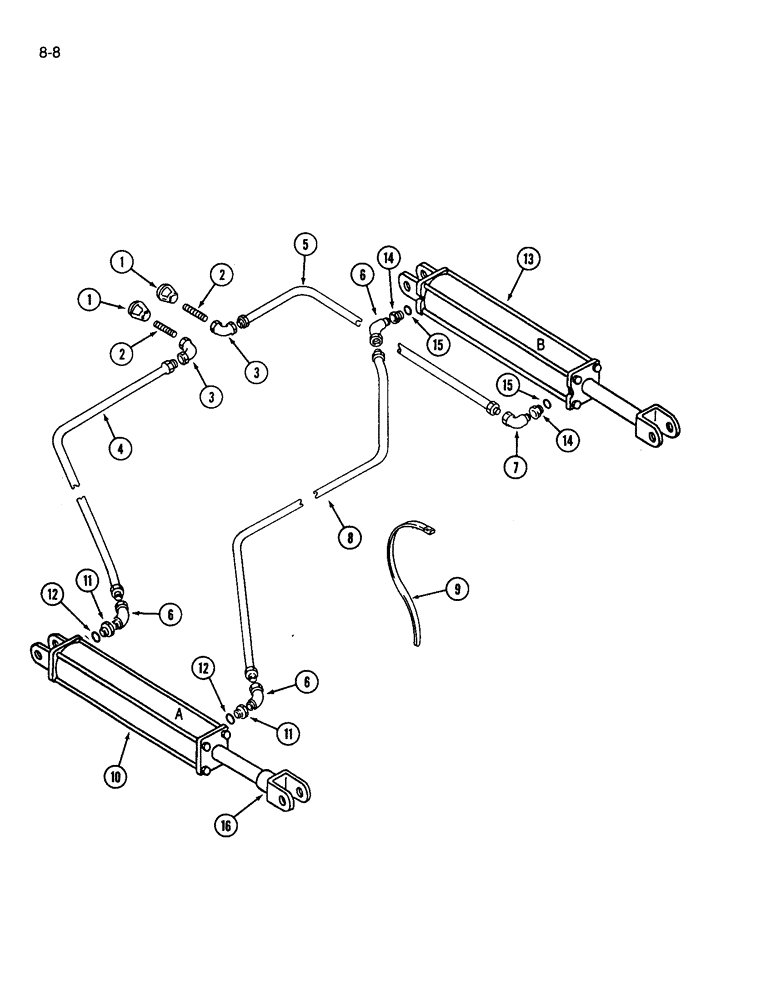

Запчасти Case IH 365 (8-08) - HYDRAULIC CIRCUIT, DEPTH CONTROL, NON FOLDING FRAME, MACHINES BUILT P.I.N. 10371 AND AFTER (08) - HYDRAULICS

1

444114

COUPLING,1/2"-14 NPTF x 3/8"-18 NPTF

- plain auto pipe, 1/2 to 3/8 inch

2шт.

2

27937R1

PIPE,Nipple, 3/8" NPT x 4"

FITTING - plain long pipe, 3/8 x 4 inch

2шт.

3

444070

ELBOW,90 Degree, 3/8"-18 NPTF, Fem, Brass

- plain auto, 90 degree, pipe, 3/8 inch

2шт.

4

1256447C1

HYDRAULIC HOSE

HOSE - hydraulic, 72 inch

1шт.

5

1265750C1

HYDRAULIC HOSE,0.38" ID x 84.00", SAE 100R7

1шт.

6

444056

ELBOW

- plain auto, 45 degree, pipe street, 3/8 inch

3шт.

7

444042

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

- plain auto, 90 degree, pipe street, 3/8 inch

1шт.

8

1265751C1

HOSE

- hydraulic, 132 inch

1шт.

9

306132C1

CABLE TIE,14.5" L

STRAP - tie, nylon, 14 inch

4шт.

10

1923519C91

CYLINDER

ASSEMBLY - hydraulic, 4 x 8 inch (See Page 8-39)

1шт.

10

85031C92

CYLINDER

ASSEMBLY - hydraulic, 4 x 8 inch (See Page 8-41)

1шт.

11

1272523C1

HYD CONNECTOR,3/4"-16 Male ORB x 3/8"-18 NPT Fem

ADAPTER - 3/4 inch male x 3/8 inch female

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

13

1923518C91

CYLINDER

ASSEMBLY - hydraulic, 3-3/4 x 8 inch (See Page 8-35)

1шт.

13

85030C92

CYLINDER

ASSEMBLY - hydraulic, 3-3/4 x 8 inch (See Page 8-37)

1шт.

14

1272523C1

HYD CONNECTOR,3/4"-16 Male ORB x 3/8"-18 NPT Fem

ADAPTER - 3/4 inch male x 3/8 inch female

2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

16

1256657C1

KIT

- stop collar

1шт.

7737869

COLLAR

PACKAGE cylinder, stop

1шт.
