(D-23) - HYDRAULIC CYLINDER & CONNECTIONS DEPTH CONTROL, FOLD, SERIAL

Запчасти Case IH 365 (D-23) - HYDRAULIC CYLINDER & CONNECTIONS DEPTH CONTROL, FOLD, SERIAL (08) - HYDRAULICS

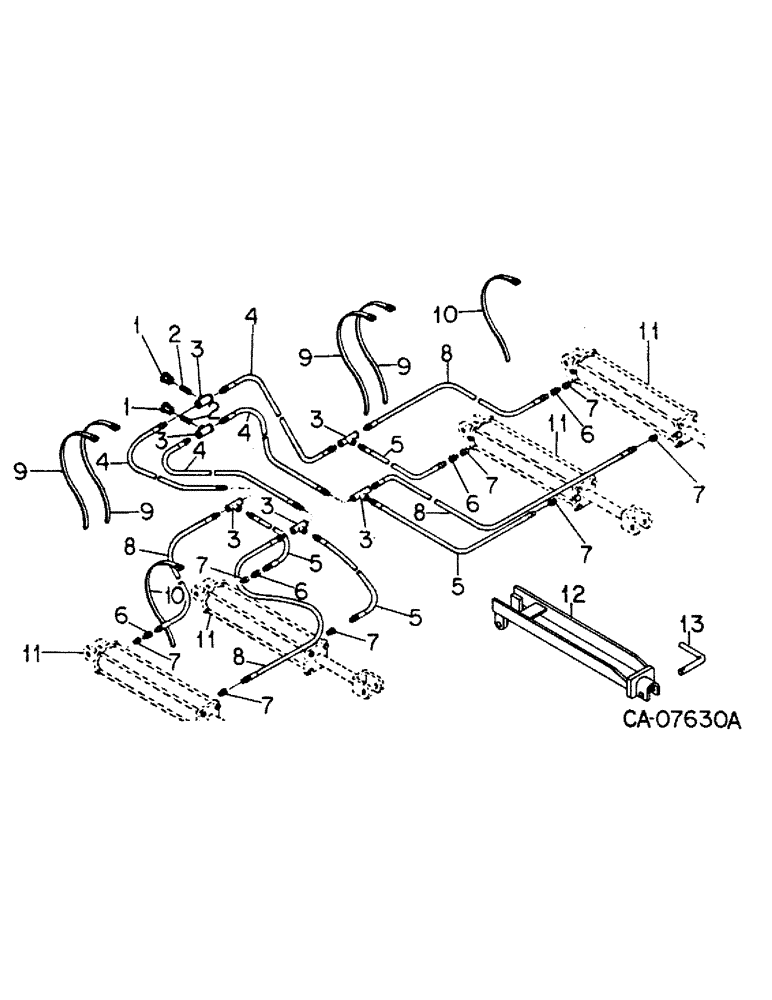

Схема запчастей Case IH 365 - (D-23) - HYDRAULIC CYLINDER & CONNECTIONS DEPTH CONTROL, FOLD, SERIAL (08) - HYDRAULICS
10
3
12
5
7
3
7
1
7
4
3
8
8
10
8
11
5
3
5
3
11
9
9
9
1
5
4
6
3
13
11
7
4
4
8
6
9
11
7
6
6
2
7
7
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

444114

COUPLING,1/2"-14 NPTF x 3/8"-18 NPTF

1/2 to 3/8 pln auto pipe

2шт.

2

109421

PIPE,Nipple, 3/8" NPT x 1 1/2"

NIPPLE, 3/8 x 1-1/2 pln long pipe

2шт.

3

444122

TEE,3/8"-18 NPTF Fem

3/8-18 pln auto pipe

6шт.

4

1256450C1

HYDRAULIC HOSE

HOSE, hyd 60 in.

4шт.

5

1256449C1

HYDRAULIC HOSE

HOSE, hyd 24 in.

4шт.

6

1256448C1

ADAPTER

RESTRICTOR, 2 way swivel, note 1

4шт.

7

444016

REDUCER

ADAPTER, 1/2 to 3/8 pln auto pipe

8шт.

8

1256450C1

HYDRAULIC HOSE

HOSE, hyd 60 in., for 2ft 8in. wing

4шт.

8

1256447C1

HYDRAULIC HOSE

HOSE, hyd 72 in., for 4ft 2in. wing

4шт.

8

1256451C1

HYDRAULIC HOSE

HOSE, hyd 90in., for 5ft 8in. wing

4шт.

8

1256700C1

HOSE, hyd 54in., for use on wing lift cylinder

2шт.

9

386170C1

CABLE TIE,.30" x 27 1/2"

TIE, wrap

4шт.

10

58556C1

CABLE TIE

TIE, wrap

2шт.

11

145210C92

CYLINDER

ASSY, 3 x 8 in. double acting hyd, see cyl, 1 for components, order cylinder assy, 1272146C91

1шт.

11

1272146C91

CYLINDER

ASSY, 3 x 8 in. double acting hyd, see cyl, 1 for components

1шт.

79976C1

KIT

KIT, cylinder o-ring and seal service, 2 for 16ft 4in., 4 for 19ft 8in., 22ft 8in. and 25ft 8in.

1шт.

603883C91

ROD, CONNECTING

ADAPTER, 3/4 x 1/2 o-ring boss

1шт.

12

1256641C1

STOP

depth control cylinder

1шт.

13

1256642C1

ROD

PIN, cylinder stop

1шт.
