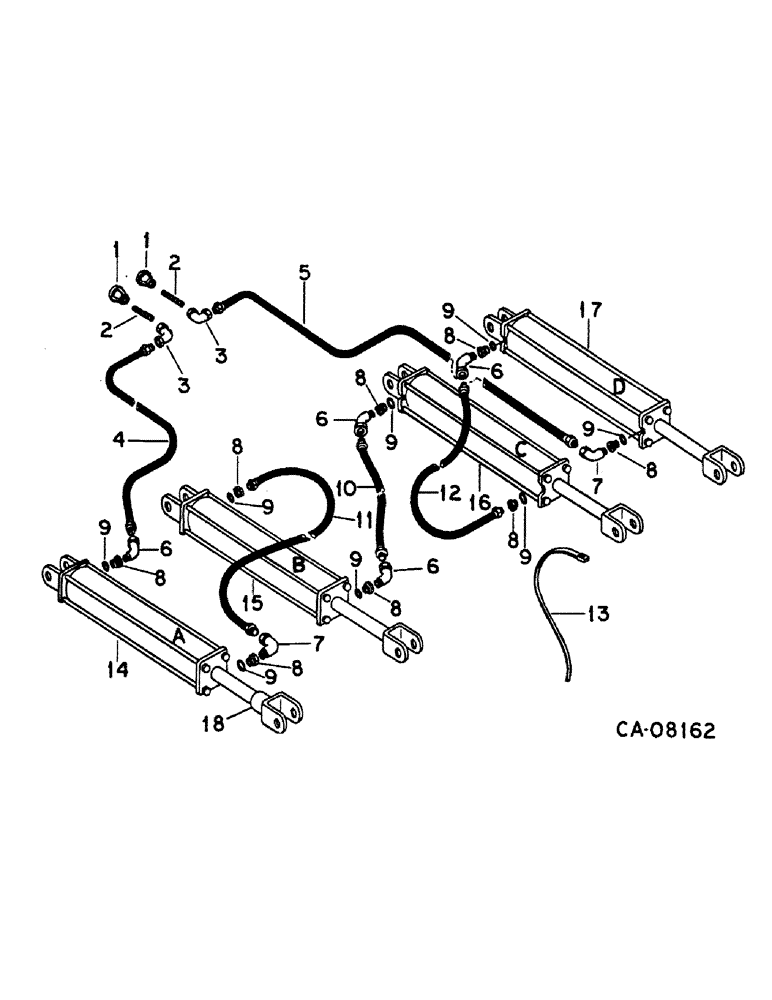

Запчасти Case IH 365 (D-24) - HYDRAULIC CYLINDERS & CONNECTIONS DEPTH CONTROL, FOR FOLDING (08) - HYDRAULICS

1

444114

COUPLING,1/2"-14 NPTF x 3/8"-18 NPTF

1/2 to 3/8 pln auto pipe

2шт.

2

27937R1

PIPE,Nipple, 3/8" NPT x 4"

NIPPLE, 3/8 x 4 pln long pipe

2шт.

3

444070

ELBOW,90 Degree, 3/8"-18 NPTF, Fem, Brass

3/8-18 pln auto 90D pipe

2шт.

4

1265755C1

HOSE

3/8 x 114 in. hydraulic, for 2ft 8in. wing

1шт.

4

1265751C1

HOSE

3/8 x 132 in. hydraulic, for 4ft 2 in. wing

1шт.

4

1265761C1

HYDRAULIC HOSE,0.38" ID x 150.00", SAE 100R7

for 5' 8" Wing 0.38" ID x 150.00", SAE 100R7

1шт.

5

1265756C1

HOSE

3/8 x 120 in. hydraulic, for 2ft 8in. wing

1шт.

5

1265759C1

HOSE

3/8 x 138 in. hydraulic, for 4ft 2in. wing

1шт.

5

1265762C1

HOSE

3/8 x 156 in. hydraulic, for 5ft 8in. wing

1шт.

6

444056

ELBOW

3/8-18 pln auto 45D pipe street

4шт.

7

444042

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

3/8-18 pln auto 90D pipe street

2шт.

8

1272523C1

HYD CONNECTOR,3/4"-16 Male ORB x 3/8"-18 NPT Fem

ADAPTER, 3/4-16 male x 3/8-18 NPTF, female, part of cylinder assy

8шт.

9

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 class 6, part of cylinder assy

8шт.

1265752C1

GUIDE

hose

2шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2 x 2-1/2 type 5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

10

1265755C1

HOSE

3/8 x 132 in. hydraulic, for all wings

1шт.

11

1256447C1

HYDRAULIC HOSE

HOSE, 3/8 x 72 in. hydraulic, for 2ft 8 in. wing

1шт.

11

1265750C1

HYDRAULIC HOSE,0.38" ID x 84.00", SAE 100R7

For 4 ft 2 in. wing

1шт.

11

1265763C1

HOSE

3/8 x 102 in. hydraulic, for 5ft 8 in. wing

1шт.

12

1265757C1

HOSE

3/8 x 66 in. hydraulic, for 2ft 8 in. wing

1шт.

12

1265760C1

HOSE

3/8 x 78 in. hydraulic, for 4ft 2 in. wing

1шт.

12

1265764C1

HOSE

3/8 x 96 in. hydraulic, for 5ft 8 in. wing

1шт.

13

58556C1

CABLE TIE

TIE, wrap 14 in., 6 for 2ft 8in. wing, 8 for 4ft 2in. wing and 5ft 8in. wing

1шт.

14

1923519C91

CYLINDER

ASSY, 4 x 8 in. phasing hyd, labeled A for trailing machine, note, order cylinder assy, 85031C91

1шт.

80117C2

SEAL KIT

cylinder o-ring and seal service

1шт.

14

85031C91

CYLINDER ASSY.

CYLINDER ASSY, 4 x 8 in. phasing hyd, labeled A for trailing machine, note

1шт.

85030C91C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

86990290C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

80117C2

SEAL KIT

cylinder o-ring and seal service

1шт.

15

1923518C91

CYLINDER

ASSY, 3-3/4 x 8 in. phasing hydraulic, note, labeled B for trailing machine, order cylinder assy, 85030C91

1шт.

80115C2

SEAL KIT

KIT, cylinder o-ring and seal service

1шт.

15

85030C91

CYLINDER ASSY.

CYLINDER ASSY, 3-3/4 x 8 in. phasing hydraulic, note, labeled B for trailing machine

1шт.

80115C2

SEAL KIT

KIT, cylinder o-ring and seal service

1шт.

16

1923517C91

CYLINDER

ASSY, 3-1/2 x 8 in. phasing hydraulic, note, labeled C for trailing machine, order cylinder assy, 85029C91

1шт.

84919C2

GASKET KIT

KIT, cylinder o-ring and seal service

1шт.

16

85029C91

CYLINDER ASSY.

CYLINDER ASSY, 3-1/2 x 8 in. phasing hydraulic, note, labeled C for trailing machine

1шт.

84919C2

GASKET KIT

KIT, cylinder o-ring and seal service

1шт.

17

1923516C91

CYLINDER

ASSY, 3-1/4 x 8 in. phasing hydraulic, note, labeled D for trailing machine, order cylinder assy 85028C91

1шт.

87423770R

REMAN-HYD CYLINDER

365 IH Cultivator, Reman For New P/N's 1923516C91 & 87423770, N.A. Only

1шт.

87423770C

CORE-HYD CYLINDER

Return Number, For N.A. Only

1шт.

80116C2

GASKET KIT

KIT, cylinder o-ring and seal service

1шт.

17

85028C91

CYLINDER ASSY.

CYLINDER ASSY, 3-1/4 x 8 in. phasing hydraulic, note, labeled D for trailing machine

1шт.

87423770R

REMAN-HYD CYLINDER

365 IH Cult., Reman For New P/N's 85028C91 & 87423770, N.A. Only

1шт.

87423770C

CORE-HYD CYLINDER

Return Number, For N.A. Only

1шт.

80116C2

GASKET KIT

KIT, cylinder o-ring and seal service

1шт.

18

1265657C1

KIT, stop collar

1шт.
