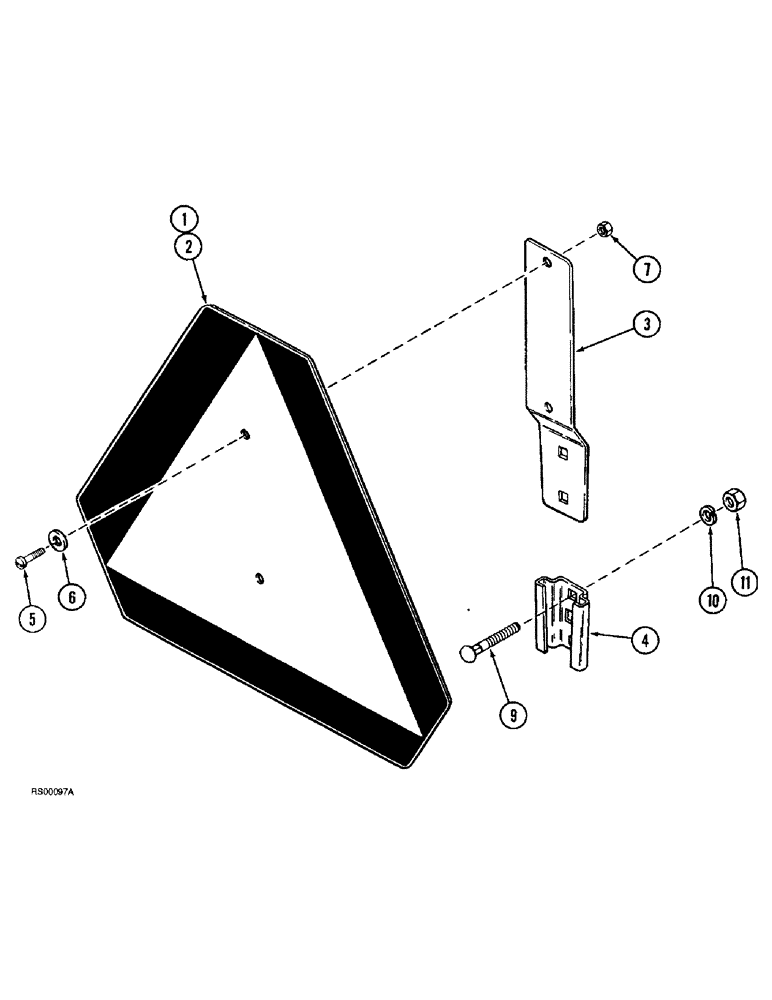

Запчасти Case IH 4300 (9-120) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

407220R1

PRODUCT GRAPHIC

EMBLEM ASSEMBLY - slow moving vehicle

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE - slow moving vehicle emblem

1шт.

2

321-4311

DECAL

- SMV emblem

1шт.

If looking for a different bracket, (Ref # 3), part number is 811324C2. bj 8/19/99

1шт.

3

A59451

BRACKET

- slow moving vehicle emblem

1шт.

4

A59457

BRACKET

- mounting

1шт.

5

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

6

495-31022

WASHER,#10

2шт.

7

225-14110

NUT,#10-24

2шт.

9

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.
