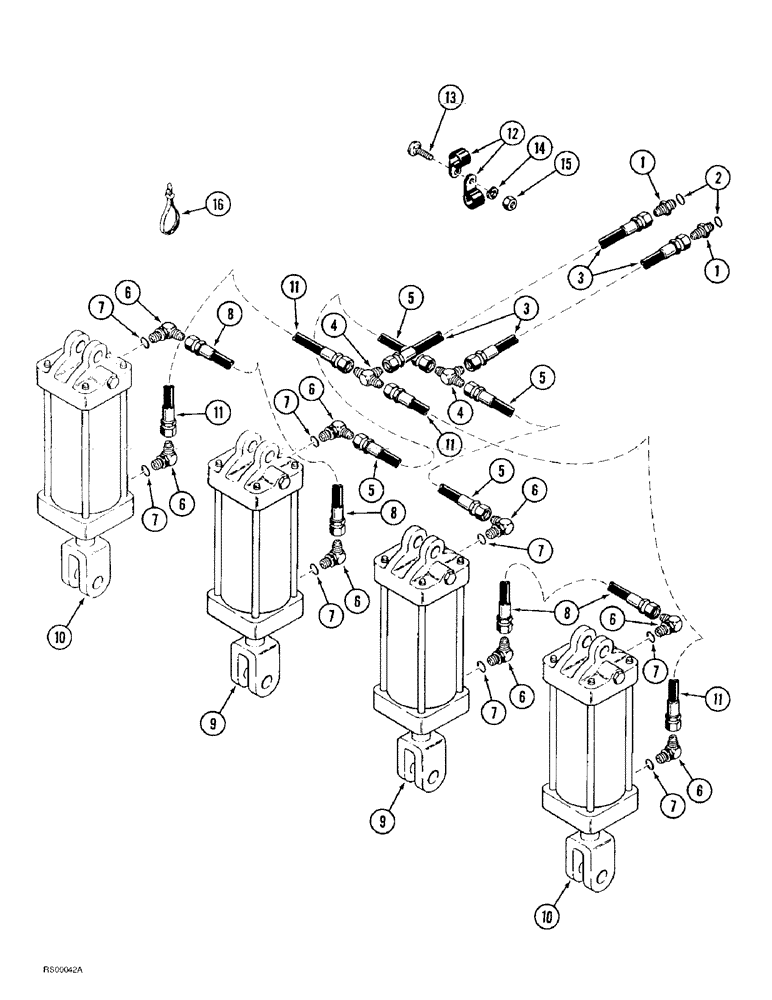

Запчасти Case IH 4300 (8-004[A]) - DEPTH CONTROL HYDRAULIC CIRCUIT, NARROW TRANSPORT, FLAT FOLD, 22.5 FT AND 24.0 FT WIDE VIBRA CHISEL (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

1284263C1

HYDRAULIC HOSE

HOSE - 7240 mm (285 inch) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

2шт.

5

1254574C2

HYDRAULIC HOSE

HOSE - 1525 mm (60 inch) long

2шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

8шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

HOSE - 2415 mm (95 inch) long

2шт.

9

1282324C93

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke (See Page 8-43)

2шт.

84255910R

REMAN-HYD CYLINDER

4300, Reman For New P/N 1282324C93

2шт.

84255910C

CORE-HYD CYLINDER

Return Number

1шт.

10

1282322C93

CYLINDER

ASSEMBLY - 83 (3-1/4) ID x 203 mm (8 inch) stroke (See Page 8-41)

2шт.

87423770R

REMAN-HYD CYLINDER

4300 CASE IH FIELD CULTIVATOR, Reman for New P/N 1282322C93

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

11

139519C2

HYDRAULIC HOSE

HOSE - 3429 mm (135 inch) long

2шт.

12

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.
