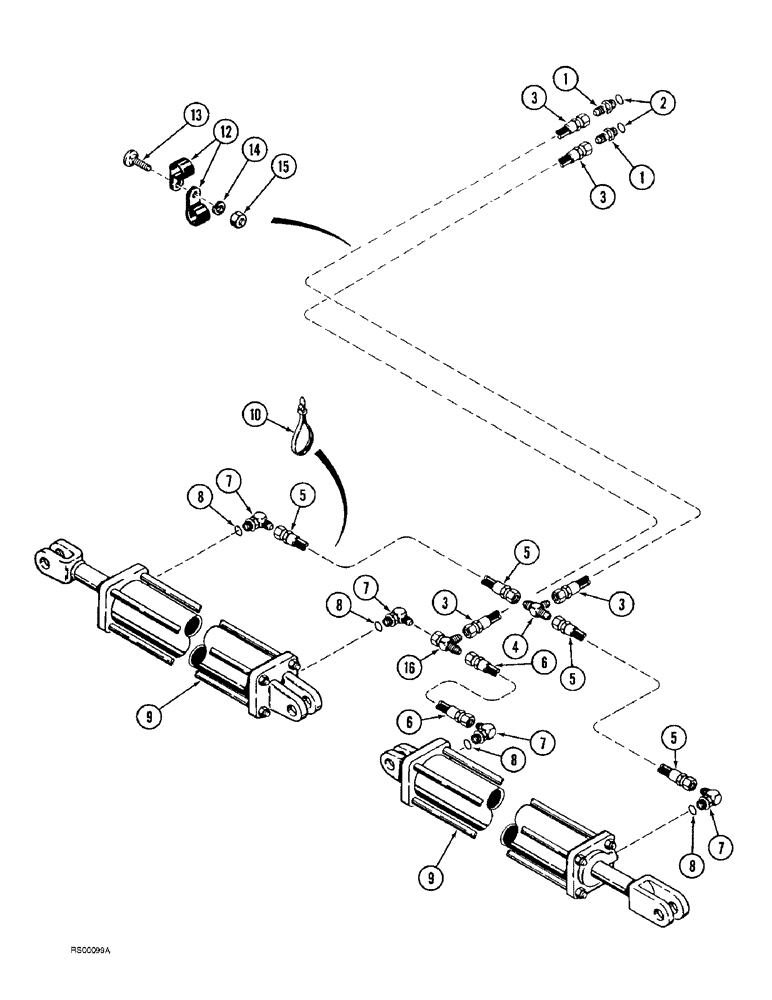

Запчасти Case IH 4300 (8-028) - WING LIFT HYDRAULIC CIRCUIT, NARROW TRANSPORT, VERTICAL FOLD, 25.1 FT THRU 39.6 FT WIDE VIBRA SHANK (08) - HYDRAULICS

1

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

1284263C1

HYDRAULIC HOSE

HOSE - 7240 mm (285 inch) long

2шт.

4

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

1шт.

5

147876C1

HYDRAULIC HOSE

HOSE - 1143 mm (45 inch) long

2шт.

6

810604C1

HYDRAULIC HOSE

HOSE - 735 mm (29 inch) long

1шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

4шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

1285753C94

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 864 mm (34 inch) stroke (25.1 foot through 27.4 foot wide vibra shank)(25.5 foot and 27.0 foot wide vibra chisel)(See Page 8-53)

2шт.

9

224795C92

CYLINDER

ASSEMBLY - 102 (4) ID x 864 mm (34 inch) stroke (28.5 foot through 32.9 foot wide vibra shank)(28.5 through 33.0 foot wide vibra chisel)(See Page 8-55)

2шт.

9

1954089C1

CYLINDER

ASSEMBLY - 114 (4-1/2) ID x 864 mm (34 inch) stroke (35.1 foot through 39.6 foot wide vibra shank)(34.5 foot through 39.0 foot wide vibra chisel)(See Page 8-57)

2шт.

10

386170C1

CABLE TIE,.30" x 27 1/2"

STRAP - tie

1шт.

12

515-23111

CLAMP,7/16", Insul, 3/8" Bolt

- P-type, 7/16 inch ID

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type 5/8", Insul, 3/8" Bolt

1шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

1шт.
