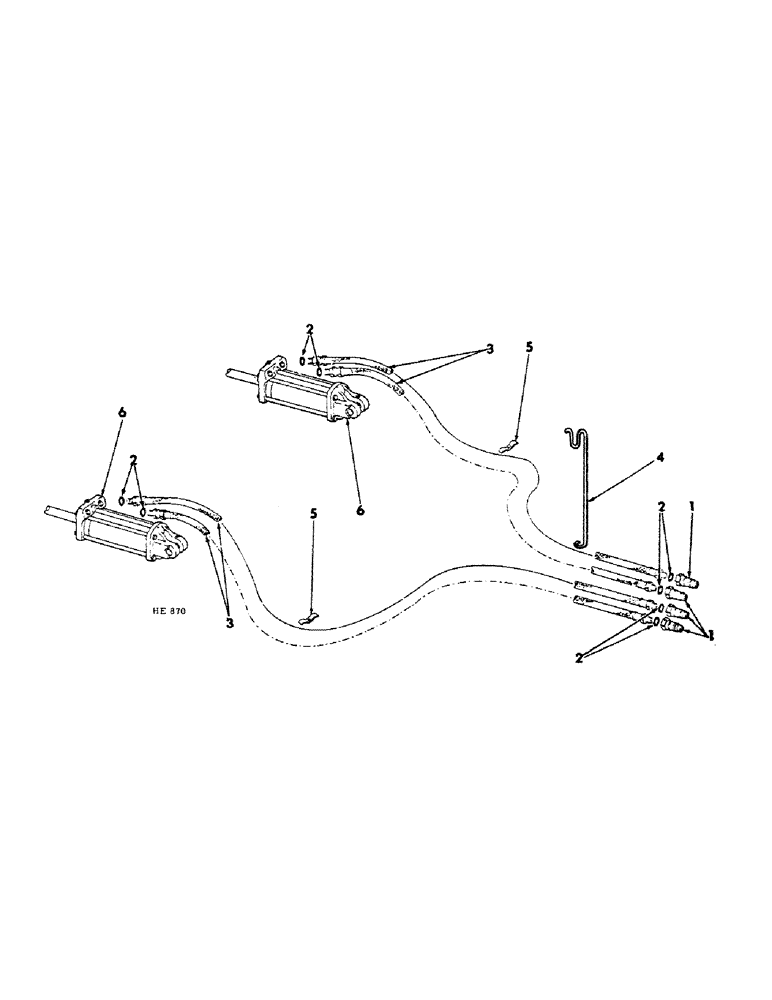

Запчасти Case IH 45 (D-48) - HYD CONNECTIONS,W/HYD WING LIFT,W/DUAL CTRL HYD,226" MODEL BUILT PRIOR TO THE 1969 SEASON

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic male, opt w/544787R91, coupler

1шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic male, opt w/395149R1, coupler, recommended hydraulic parts

4шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic

8шт.

3

372570R91

HOSE ASSY.

HOSE, 1/2 x 152 inch long tractor, recommended hydraulic parts

4шт.

4

651793R2

SUPPORT

flexible hose

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

5

317054R1

CLAMP

hydraulic hose

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

6

403842R93

CYLINDER, 3-1/2 x 8 inch DA hyd

2шт.

6

371292R95

CYLINDER

3-1/2 x 8 inch DA hyd

2шт.

6

61105C91

CYLINDER

3-1/2 x 8 inch DA hyd, recommended hydraulic parts, for components refer to remote control hyd cyl

2шт.
