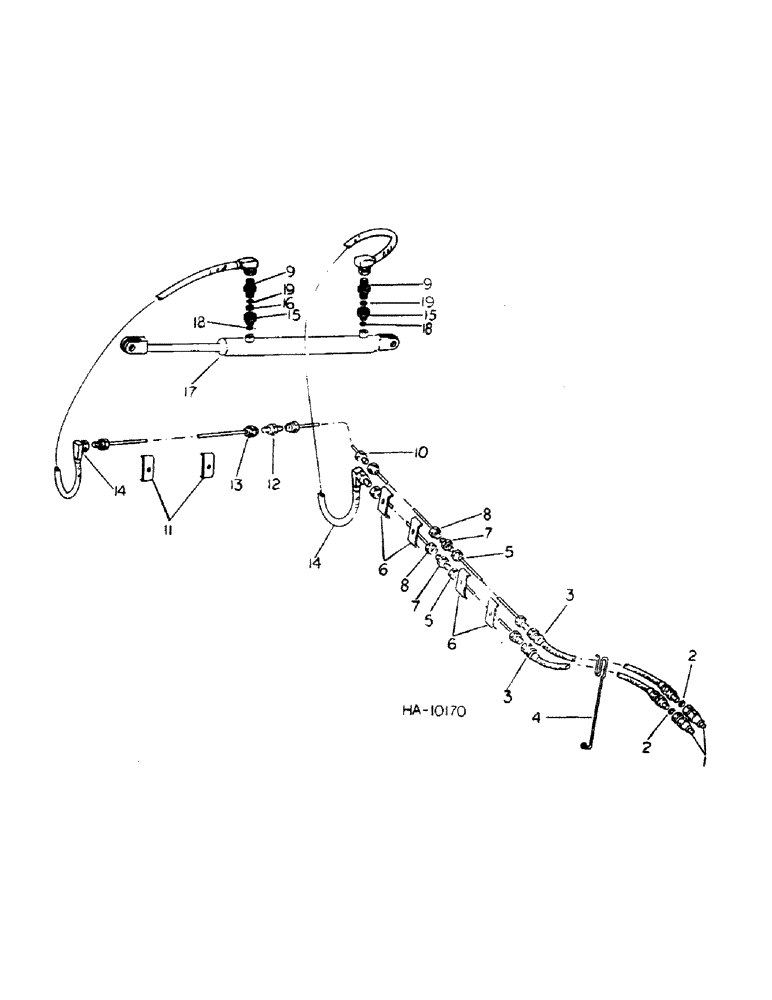

Запчасти Case IH 45 (D-56) - WING LIFT HYDRAULIC SYSTEM, 31 FOOT 6 INCH MODEL BUILT AUGUST, 1976 SEASON AND SINCE

1

395149R1

QUICK MALE COUPLING

COUPLER, hydraulic male, opt w/544787R91, coupler

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hydraulic hose male, opt w/395149R1, coupler, recommended hydraulic parts

2шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydraulic coupler, recommended hydraulics

2шт.

3

811270C1

HOSE

1/2 x 80 inch long hydraulic

2шт.

4

651793R2

SUPPORT

flexible hose

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 x 2 hex-hd

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

2шт.

5

813401C1

HOSE,0.375" OD, 107.5, 5" Length

TUBE ASSY, 108 inch wing lift hyd cyl pressure and return flow

2шт.

6

614323R2

CLAMP

hydraulic tube

4шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

1 per clamp Hex, 5/16"-18 x 1 1/4", G5

1шт.

120376

NUT,5/16"-18, G5

1 per bolt 5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, , 1 per bolt 5/16"

1шт.

7

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 hyd 37 deg flared tube wing lift cyl pressure flow

2шт.

8

813215C1

TUBE

ASSY, 73 inch wing lift hyd cyl pressure & return intermediate

2шт.

9

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg. hyd flared tube short swivel

2шт.

10

813398C1

TUBE

ASSY, pressure flow corner hyd

1шт.

11

614323R2

CLAMP

hydraulic tube

3шт.

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

5/16-18 x 1-3/4 hex-hd

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

12

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

9/16-18 hyd 37 deg. flared tube wing lift cylinder pressure flow

1шт.

13

813427C1

TUBE

ASSY, 41 inch wing lift hyd cyl hose to corner tube

1шт.

14

HOSE, wing lift with straight nipple for service order 1-100849C1, hose and 1-9410202

1шт.

14

100849C1

HOSE

1/4 x 64 inch wing lift hyd cyl

2шт.

15

610952R1

ADAPTER

UNION, 3/4-16 male to 9/16-18 female 37 deg. flared tube

2шт.

16

610767R1

DISC

WASHER, lift cylinder restrictor use with cross wing lift cyl

1шт.

17

811677C91

CYLINDER

CYL ASSY, 3 x 48 DA wing lift, cross

1шт.

17

813238C91

CYLINDER

CYL ASSY, 3 x 48 DA wing lift, prince, for comps refer to wing lift cyl

1шт.

18

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

wing lift hyd cyl union

2шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, wing lift hyd cyl hose

2шт.
