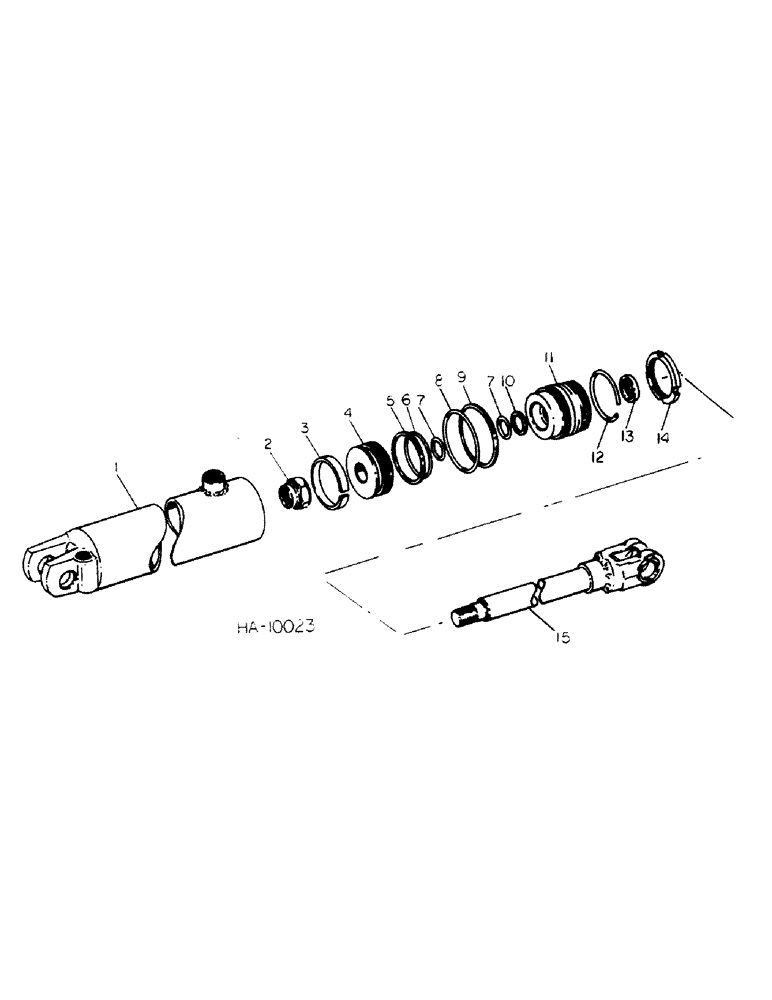

Запчасти Case IH 45 (D-63) - SLAVE HYDRAULIC CYLINDER, CESSNA, AUGUST, 1976 SEASON AND SINCE

812367C91

CYLINDER

ASSY, wing wheel slave, 3-1/4 x 8 inch double acting

2шт.

87423770R

REMAN-HYD CYLINDER

45 INTERNATIONAL HARVESTER VIBRA SHANK CULTIVATOR, Reman for New P/N 812367C91

2шт.

87423770C

CORE-HYD CYLINDER

Return Number

1шт.

1

812654C1

BODY

cylinder

1шт.

2

691547R1

NUT

piston rod

1шт.

3

FELT, piston wear, not serviced separately, order 1-812723C1

1шт.

4

812667C1

PISTON

cylinder

1шт.

5

RING, piston slipper, not serviced separately, for service order kit 1-812723C1

1шт.

6

22410R1

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

2.875 x 3.125 x .125

1шт.

7

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1.250 x 1.500 x .125

2шт.

8

707220R1

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

3.000 x 3.250 x .125

1шт.

9

WASHER, bearing end o-ring back-up, not serviced separately, for service order kit 812723C1

1шт.

10

WASHER, piston rod o-ring back-up, not serviced separately, for service order kit 812723C1

1шт.

11

812656C1

END

bearing

1шт.

12

812722R1

RING, end bearing lock

1шт.

13

SEAL, wiper oil, not serviced separately, for service order kit 812723C1

1шт.

14

812657C1

NUT

bearing end

1шт.

15

812658C1

ROD

piston

1шт.

812723C1

SEAL KIT

hyd cyl seal repair, consists of ref nos. 3, 5-10, 13

1шт.
