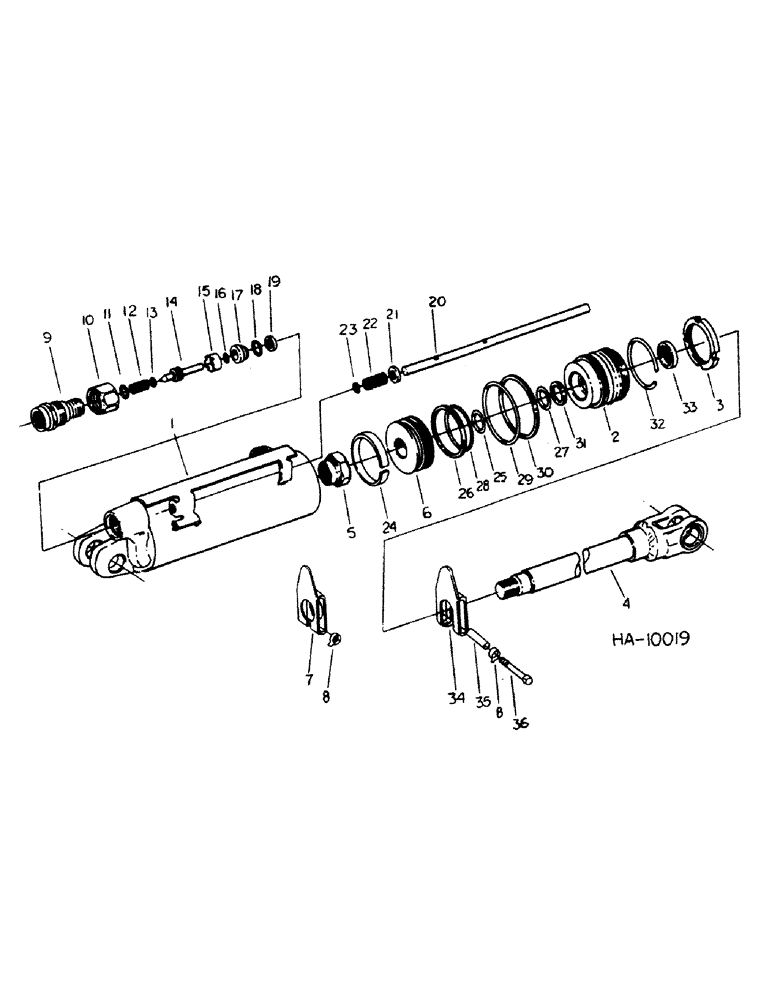

Запчасти Case IH 45 (D-66) - MASTER HYDRAULIC CYLINDER, CESSNA, AUGUST 1976 SEASON AND SINCE

812368C91

CYLINDER

CYL ASSY, 3.5 x 8 DA main wheel, opt to use 1-812735C92, Cross

2шт.

1

812728C1

BODY

cylinder

1шт.

2

813007C1

END

cylinder bearing

1шт.

3

573697R1

BEARING LOCK NUT

bearing end

1шт.

4

812658C1

ROD

piston

1шт.

5

691547R1

NUT

piston rod

1шт.

6

813011C1

PISTON

cylinder

1шт.

7

STOP, piston rod, for service of stop w/o spacer order 1-811549C1, 1-811550C1, 1-181651, 1-9413243, 1-22655R1

1шт.

114-219

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5

3/8-24 x 2-1/2 hex-hd

1шт.

9413243

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 hex lock

1шт.

22655R1

WASHER

.406 x .812 x .065

1шт.

8

8130158C1

WASHER, hex lock

1шт.

9

813057C1

FITTING

stroke control

1шт.

10

813016C1

NUT

stroke control fitting

1шт.

11

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

.875 x 1.063 x .094

1шт.

12

813078C1

SPRING

plunger

1шт.

13

238-5106

O-RING,0.103" Thk x 0.174" ID, -106, Cl 5, 75 Duro

.103 x .160 ID plunger, not serviced separately, for service order kit, 813108C1

1шт.

14

813079C1

PLUNGER

stroke control

1шт.

15

813088C1

SPACER

plunger

1шт.

16

O-RING, .103 x .362 ID, not serviced separately, for service order kit, 813108C1

1шт.

17

813105C1

RETAINER

plunger

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

.625 x .813 x .094

1шт.

19

SEAL, control plunger wiper, not serviced separately, for service order kit, 813108C1

1шт.

20

813106C1

ROD

stroke control push

1шт.

17183R1

LOCK PIN,Sl Spring, 5/32" x 5/8"

PIN, 5/32" x 5/8", Slotted

2шт.

21

23408R1

WASHER

.469 x .750 x .054

1шт.

22

813107C1

SPRING

push rod

1шт.

23

(Not used this application)

1шт.

24

RING, piston wear, not serviced separately, for service order kit, 813108C1

1шт.

25

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1.250 x 1.500 x .125

1шт.

26

RING, piston slipper teflon, not serviced separately, for service order kit, 813108C1

1шт.

27

386422R1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1.250 x 1.500 x .125

1шт.

28

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

3.125 x 3.375 x .125

1шт.

29

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3.250 x 3.500 x .125

1шт.

30

WASHER, bearing end o-ring back-up, not serviced separately, for order kit, 813108C1

1шт.

31

WASHER, bearing end o-ring back-up, not serviced separately, for service order kit, 813108C1

1шт.

32

RING, end bearing lock, not serviced separately, for service order kit, 813108C1

1шт.

33

SEAL, piston rod oil, not serviced separately, for service order kit, 813108C1

1шт.

34

811549C1

STOP

piston rod

1шт.

35

811550C1

SPACER

stop

1шт.

36

181651

SHIELD

BOLT, 3/8-24 x 2-3/4 hex-hd

1шт.

9413243

LOCK NUT,3/8"-24, GB

NUT, 3/8, NF CAD P/T lock type 5

1шт.

22655R1

WASHER

.406 x .812 x .051 CAD

1шт.

813108C1

SEAL KIT

hyd cyl seal repair, consists of ref nos. 11, 13, 16, 18, 19, 24 thru 33

1шт.
